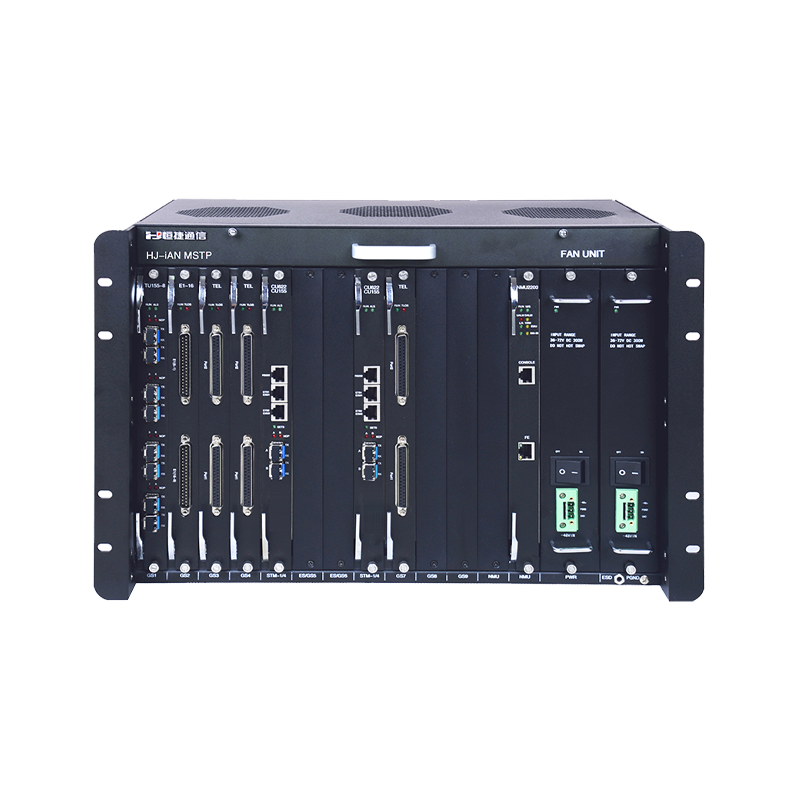

HJ-iAN2200 is a new generation centralized MSAP device, composed of a chassis and unit boards. The chassis adopts a 19-inch 7U plug-in design (chassis dimensions: 311MM*293MM*482MM), with a PGND screw and anti-static interface at the lower right corner of the chassis; the unit boards include a fan board, power board, network management board, SDH uplink board, GE Ethernet core aggregation board, service boards, etc. The fan board is located at the top of the device, providing ventilation and heat dissipation; the power board supplies +12V power to the device; the network management board provides network management functions; the SDH uplink board offers cross-connection and synchronous timing functions; the GE Ethernet core aggregation board provides Ethernet switching functions; the service boards include various service branch boards to meet customer needs.
1. Equipment Structure
19-inch 7U plug-in box, 16 card slots
LVDS clockless backplane wiring, independent bus structure for SDH and GE
Dual SDH uplink boards, dual Ethernet core aggregation boards, dual network management boards, dual power boards structure, making the system safer and more reliable
2. SDH Uplink Board
Up to 4 STM-4 or STM-1
Group optical interfaces (2 per board) use LC-type SFP optical transceiver modules, supporting hot swapping
Maximum cross-connect capacity is 32VC4x32VC4, 96TU-3x96TU-3, 2016VC12x2016VC12
SDH uplink board 1+1 protection, achieving hot backup of clock modules
Single/dual-ended 1+1 linear multiplex section protection and SNCP protection

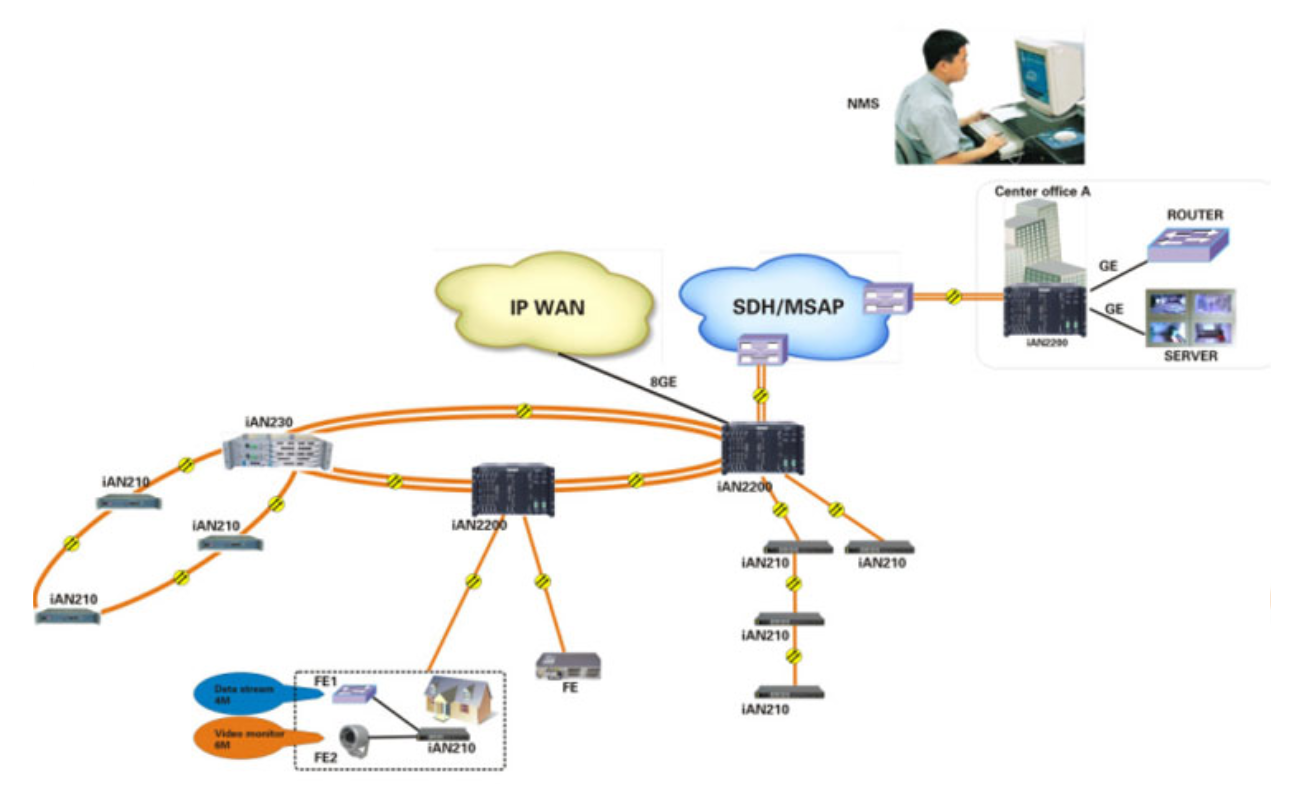

Topologies including point-to-point, chain network, ring network, and tangential ring
3. Ethernet Core Aggregation Board
Up to 4 Gigabit optical ports and 4 Gigabit electrical ports
Each board can independently aggregate 8 groups of Gigabit Ethernet data from the backplane
5. Multiple Service Boards
Supports downstream STM-1 optical branch boards, E1, EOSDH, EOPDH and various branch service boards
Can interconnect with remote Ethernet fiber transceivers, SDH devices, MSTP devices, etc.
Supports 1+1 channel protection
Supports built-in E1 error bit testing function
Complies with VCAT virtual concatenation and LCAS link capacity adjustment method as recommended by ITU-T G.7042
6. Equipment Timing
Can track timing sources from group optical ports, external synchronization timing sources, and branch timing sources
Provides external synchronization timing source output
Supports automatic or forced selection of timing sources
Supports four timing modes: free oscillation, tracking, locking, and holdover
7. System Management
Supports C/S architecture INETVIEW G2000 network management platform, enabling remote lossless online upgrade of network elements
Supports DCC management channel and EXM (extended network management) channel for management between gateway and network elements
Supports DCN network management channel for management between server and gateway
Supports SNMP_V1 and SNMPV2 protocols
Provides device rack-top alarm output
|
Category |
Board Name |
Model |
Brief Description |
Insertable Slot |
|
SDH Uplink |
STM-4 Optical SDH Uplink Board |
CU622 |
2XSTM-4, built-in cross-connect and SET functions. |
5,8 |
|
STM-1 Optical SDH Uplink Board |
CU155 |
2XSTM-1, built-in cross-connect and SET functions. |
5,8 |
|
|
Ethernet Core Aggregation |
Ethernet Core Aggregation Board |
CUGE4A |
2xGX+2XGE, supports port VLAN and 802.1Q VLAN, Supports link aggregation Trunk function. Can aggregate up to 8 service slots of 1000 Ethernet data. |
6,7 |
|
|
E1 Mapping Board |
E1-16 |
16 E1 channels, optional 75Ω or 120Ω |
1-4, 6-7, 9-11 |
