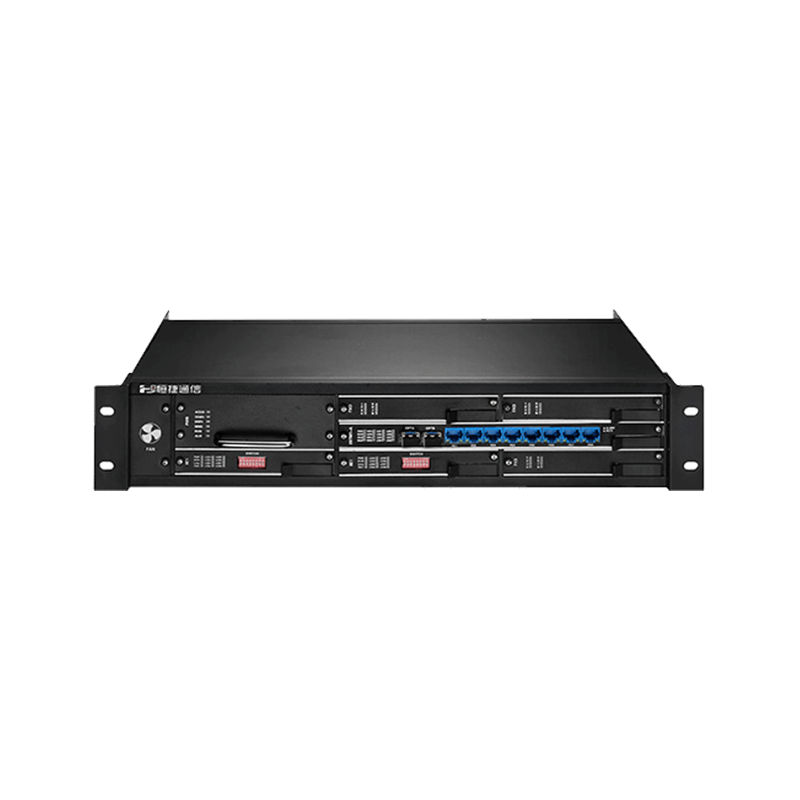

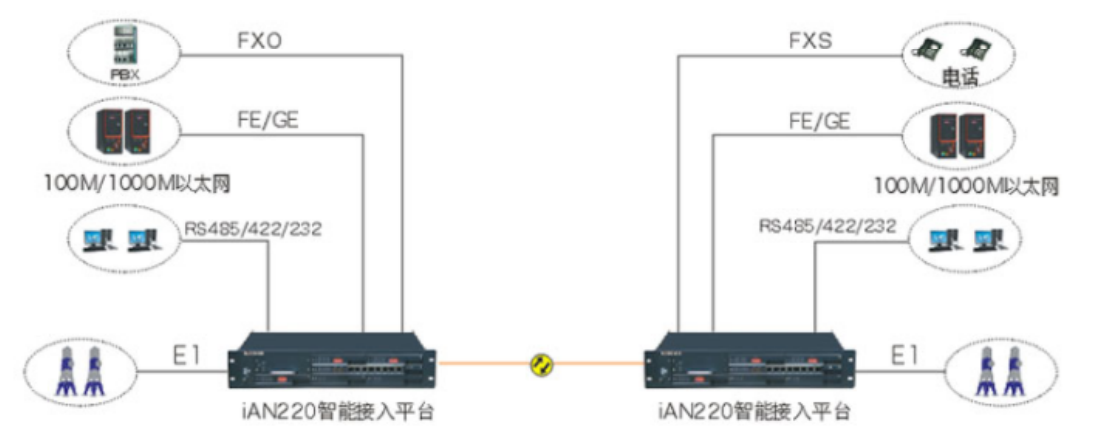

HJ-iAN220 Intelligent Access Platform is an STM-1 level multi-service SDH (SYNCHRONOUS DIGITAL HIERARCHY) optical transmission system. It features two STM-1 level group optical ports, enabling multiplexing and transmission of services such as E1 and Ethernet based on GFP encapsulation. It supports full time-slot cross-connect functionality, with flexible and convenient upstream and downstream circuits, and can serve as an upstream/downstream multiplexer or terminal multiplexer to build point-to-point, chain, and ring network devices. It is widely used in scenarios requiring high reliability and comprehensive functionality, such as telecommunications, mobile, Unicom, power, public security, military, highways, banking, aviation, and other dedicated communication networks.
1. All interface technical parameters comply with relevant international or domestic standards
2. All types of boards support hot-swapping functionality

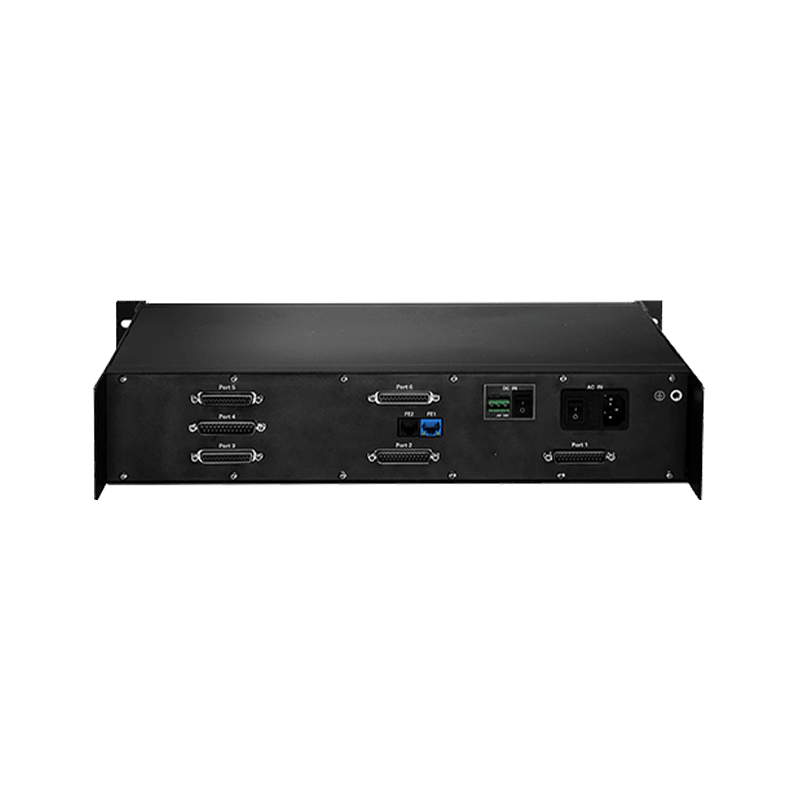

3. 19-inch 2U chassis, plug-in design, easy expansion and maintenance; 1 main control slot, 5 service slots, and 1 power slot
Transmission interface: provides 2 STM-1 rate level group optical interfaces, using SFP optical modules, supporting hot-swapping
Service interface: 24 standard E1 interfaces (G.703), unbalanced or balanced interfaces optional; 8 physically isolated 10/100M bandwidth Ethernet interfaces; 40 telephone interfaces.
Auxiliary interface: Ethernet network management interface, RJ45 interface; provides serial network management interface CONSOLE, RJ45 interface
4. Each interface has good overcurrent, overvoltage, and lightning protection. Complies with ITU-T K.20 for lightning surge, power induction test, and power contact test; automatically recovers after circuit surge release
5. Telecom-grade voice quality, fast fax speed, clear characters. Supports caller ID and reverse polarity billing signals
6. Supports 1+1 channel automatic protection function, protection switching time <50ms
7. Ethernet functions:
Supports GFP-F encapsulation protocol according to ITU-T G.7041 standard,
Supports VCAT protocol recommended by ITU-T G.707, supports LCAS protocol recommended by ITU-T G.7042
Supports PAUSE flow control function
Supports maximum frame length of 1552 bytes
Supports LAN port auto-negotiation function
8. Supports Remote Power Down (RPD) function and Automatic Laser Shutdown (ALS) function
9. Supports built-in error detector and various loopback operations
10. Supports local software online upgrade, easy maintenance
11. Modular power design; dual power supply modes AC220V and DC-48V
12. Comprehensive network management functions, real-time monitoring of various device operating statuses (optional)

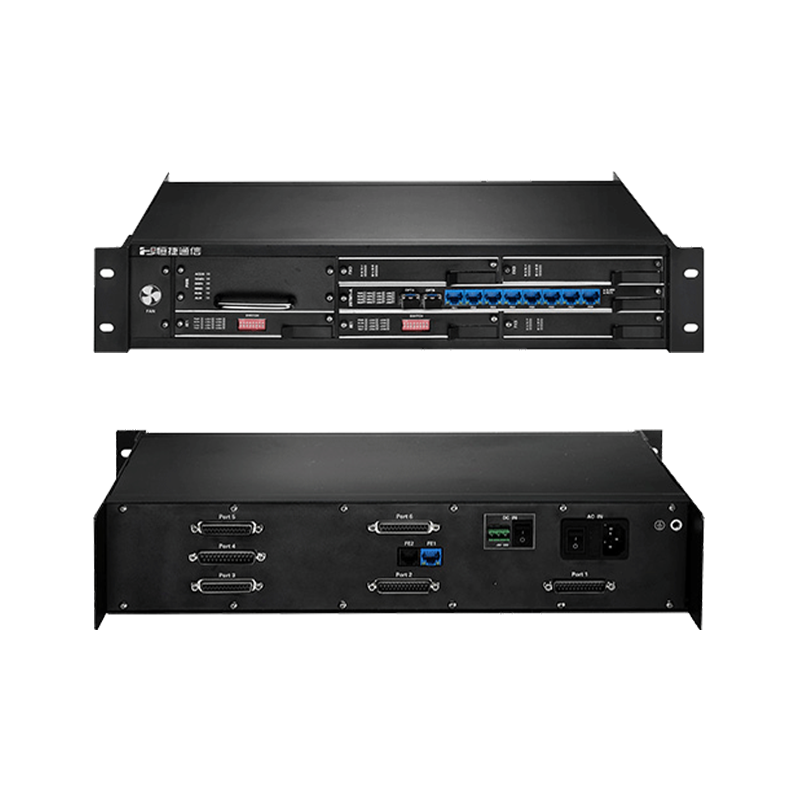

13. Size and structure: 2U rack-mount: (484x276x88)mm
|
Name |
Function Description |
|
PWR |
On: Power is normal |
|
Off: Power input is abnormal or no power input |
|
|
RUN |
Steady blinking: Network management CPU is running normally |
|
Always off or always on: Network management CPU is not running normally |
|
|
UALN |
On: There is an urgent alarm |
|
Off: No urgent alarm |
|
|
DALN |
On: There is a non-urgent alarm |
|
Off: No non-urgent alarm |
|
|
NOPA NOPB |
On: No light received on optical ports 1-2 |
|
Off: Optical ports 1-2 link is normal |
|
|
RPDA RPDB |
On: Remote device of optical ports 1-2 is powered off |
|
Off: Remote device of optical ports 1-2 is powered on |
|
|
L0S1 L0S8 |
On: 2M channels 1-8 are in LOS state |
|
Off: 2M channels 1-8 are normal |
|
|
OPTA OPTB |
Optical port transmit/receive ports |
|
FE1-FEB |
100M Ethernet interfaces 1-8 |
|
ALARM/MUTE |
Buzzer button |
|
ETH1 |
Network management interface (Ethernet mode) |
|
ETH2 |
RS232 serial network management interface (CPU serial port + ARW serial port) |
