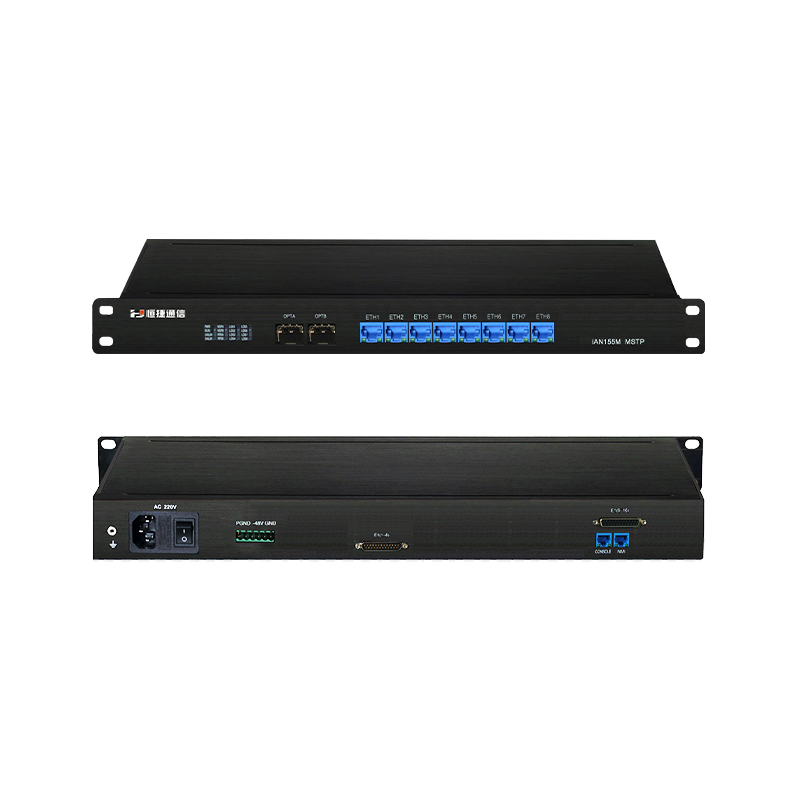

HJ-iAN155M Intelligent Access Platform is an STM-1 level multi-service SDH (SYNCHRONOUS DIGITAL HIERARCHY) optical transmission system. It features two STM-1 level group optical ports, enabling multiplexing and transmission of services such as E1 and Ethernet based on GFP encapsulation. It supports full time-slot cross-connect functionality, with flexible and convenient upstream and downstream circuits, and can serve as an upstream/downstream circuit multiplexer or terminal multiplexer to build point-to-point, chain, and ring networks.

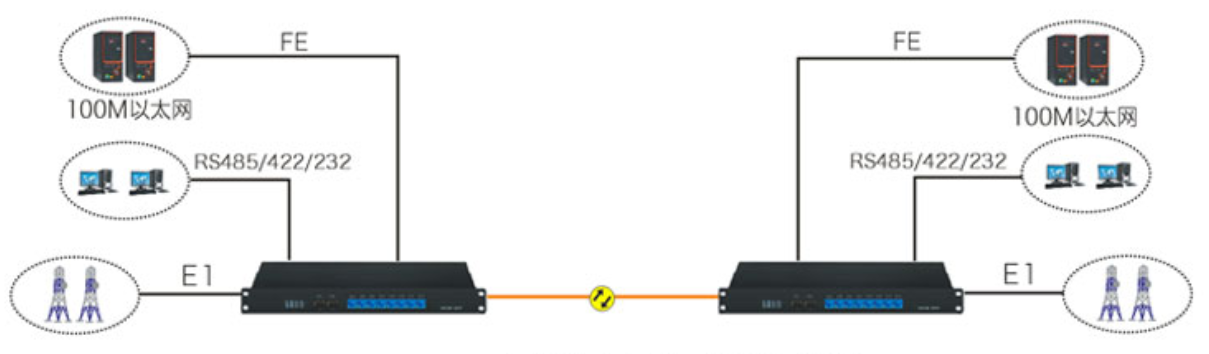

The equipment is widely used in scenarios requiring high reliability and comprehensive functionality, such as telecommunications, mobile, Unicom, power, public security, military, highways, banking, aviation, and other specialized communication networks.
1. All interface technical parameters comply with relevant international or domestic standards
2. All types of boards support hot-swapping functionality

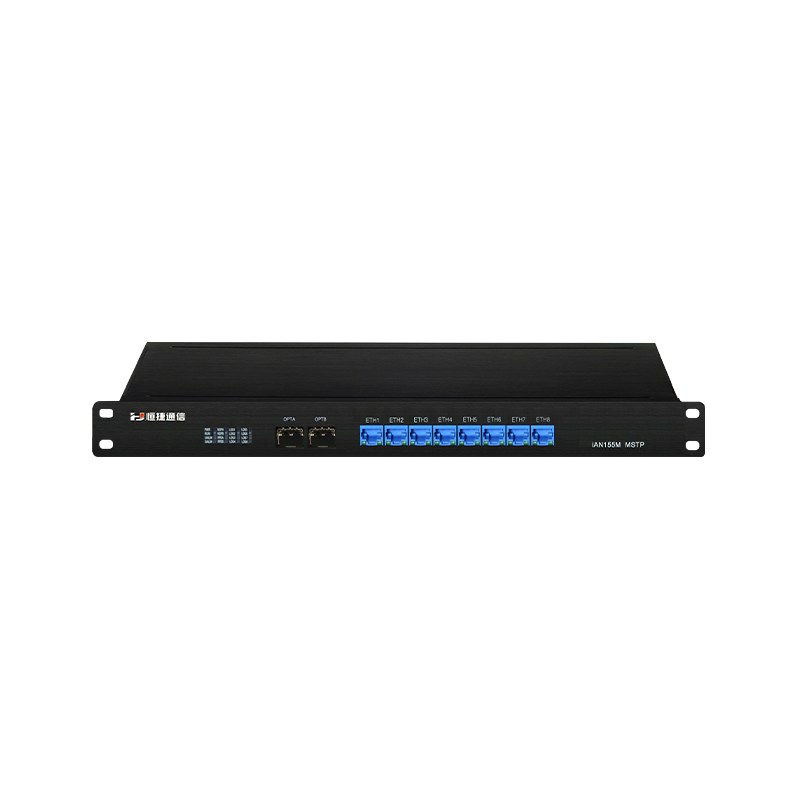

3. 19-inch 1U chassis, plug-in design, easy for expansion and maintenance
Transmission interface: provides 2 STM-1 rate level group optical interfaces, using SFP optical modules, supports hot-swapping
Service interface: 8 standard E1 interfaces (G703), unbalanced or balanced interfaces optional; 8 physically isolated 10/100M bandwidth Ethernet interfaces

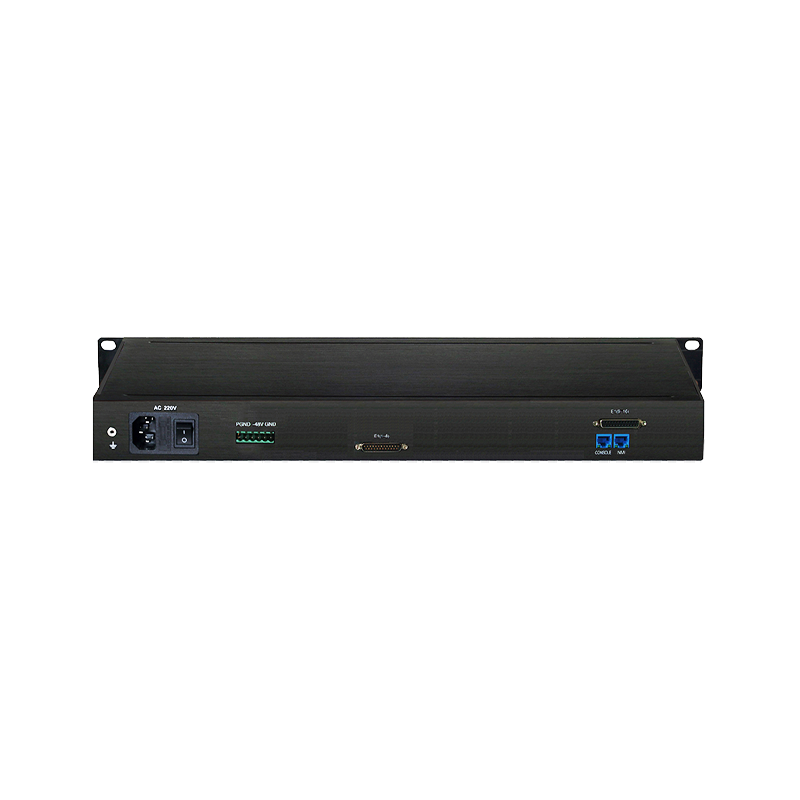

Auxiliary interface: Ethernet network management interface, RJ45 interface; provides serial network management interface CONSOLE, RJ45 interface
4. Supports 1+1 channel automatic protection function, protection switching time <50ms
5. Ethernet functions:
Supports GFP-F encapsulation protocol according to ITU-T G.7041 standard
Supports VCAT protocol recommended by ITU-T G.707, supports LCAS protocol recommended by ITU-T G.7042
Supports PAUSE flow control function
Supports maximum frame length of 1552 bytes
Supports LAN port auto-negotiation function
6. Supports Remote Power Down (RPD) detection function and Automatic Laser Shutdown (ALS) function
7. Supports built-in error detector and various loopback operations
8. Supports local software online upgrade, easy to maintain
9. Modular power design; dual power supply modes AC220V and DC-48V
10. Comprehensive network management functions, real-time monitoring of various device operating statuses (optional)
11. Size and structure: 1U rack-mount: (484x231x44)mm
|
Module |
Name |
Function Description |
|
Indicator Light Module |
PWR |
On: When the system power is connected, the power is working normally |
|
Off: No power input or the input power does not meet the requirements |
||
|
RUN |
Steady blinking: The device's main CPU is running normally |
|
|
Always on or always off: Both indicate the device's main CPU is not running properly |
||
|
LOOP |
Off: The device is not in loopback state |
|
|
On: The device is in loopback state |
||
|
TEST |
On: Test without error code |
|
|
Off: Test with error code |
||
|
L0S1-L0S8 |
Off: 2M channel normal |
|
|
On: Local 2M signal lost; Blinking: Local 2M signal AIS |
||
|
E1 Interface Module |
Port |
Provides 8 E1 interfaces |
