P4810S-T High-Frequency Switching Power Supply

P4810S-T High-Frequency Switching Power Supply

The P4810S-T power system is suitable for small program-controlled switches, transmission equipment, access networks, mobile communications, satellite communication ground stations, microwave communication power supply, and can also be used to power other communication devices.

Message

Detailed introduction
Features
Product Configuration
Application Plan
Data Download

Commodity name: P4810S-T High-Frequency Switching Power Supply

P4810S-T power system is suitable for small program-controlled switches, transmission equipment, access networks, mobile communications, satellite communication ground stations, microwave communication power supply, and can also be used to power other communication equipment.

The system adopts a 19-inch 1U standard integrated AC/DC power distribution design, offering good versatility.
The rectifier module and monitoring module feature hot-swappable functionality, enabling system maintenance without power interruption.

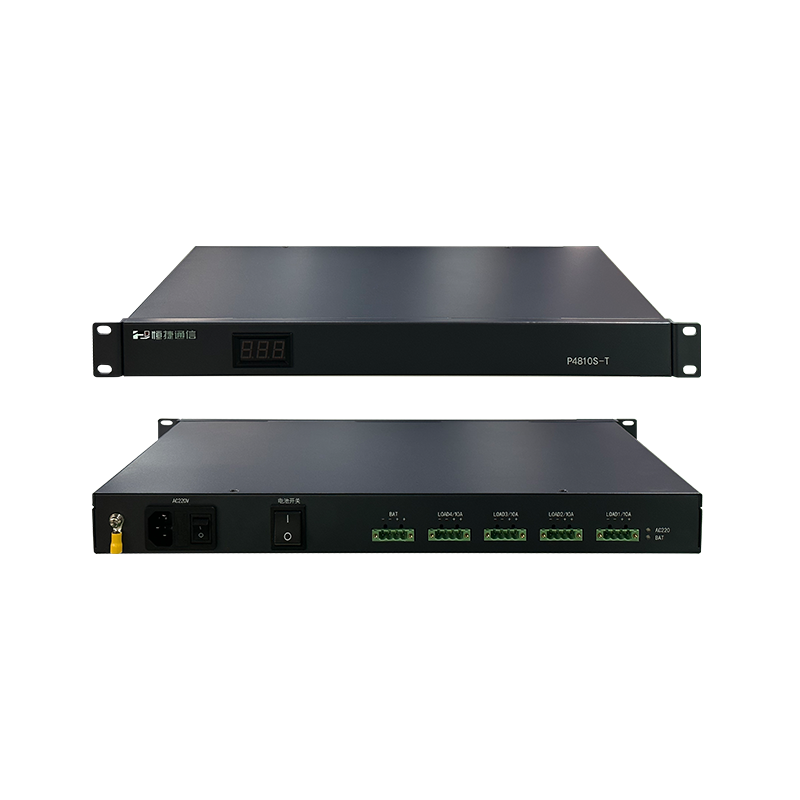

Dimensions: The power supply system uses a rack-mounted design consisting of a chassis, fan board, plug-in area, and power board, complying with IEC297 19-inch 1U standard plug-in box design specifications.
The chassis dimensions are: 440mm (width) × 44mm (height) × 270mm (depth).

Working Environment

Input Voltage: AC220V

Voltage Fluctuation: AC190V～AC260V

Output Power: 500W

Storage Conditions

Storage Temperature: -40 ～ 80 (℃)

Storage Humidity: 5%~90% non-condensing
