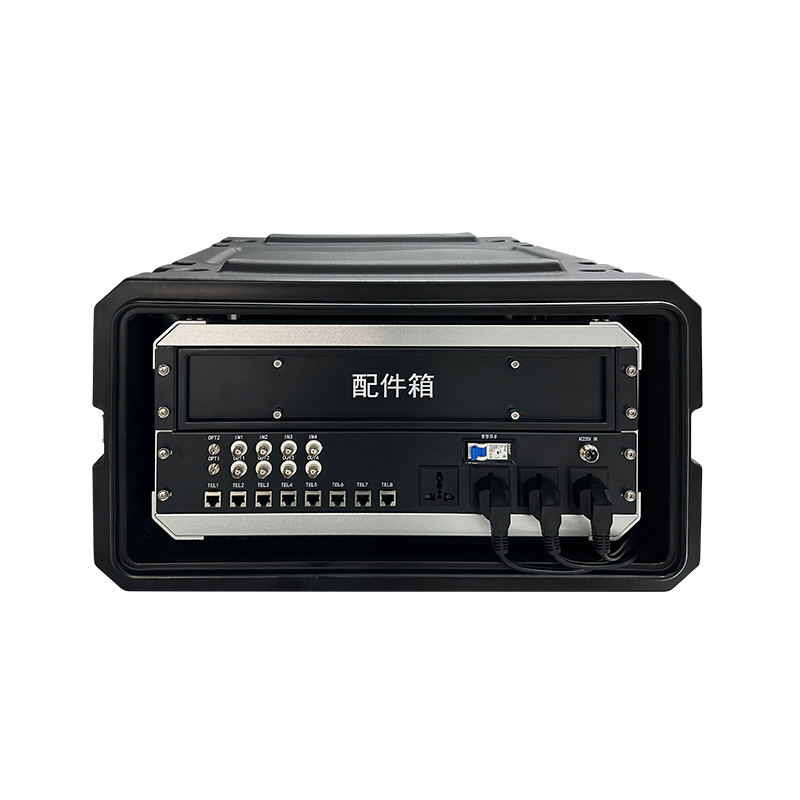

HJ-GAN210BX Portable Communication Device

HJ-GAN210BX Portable Communication Device

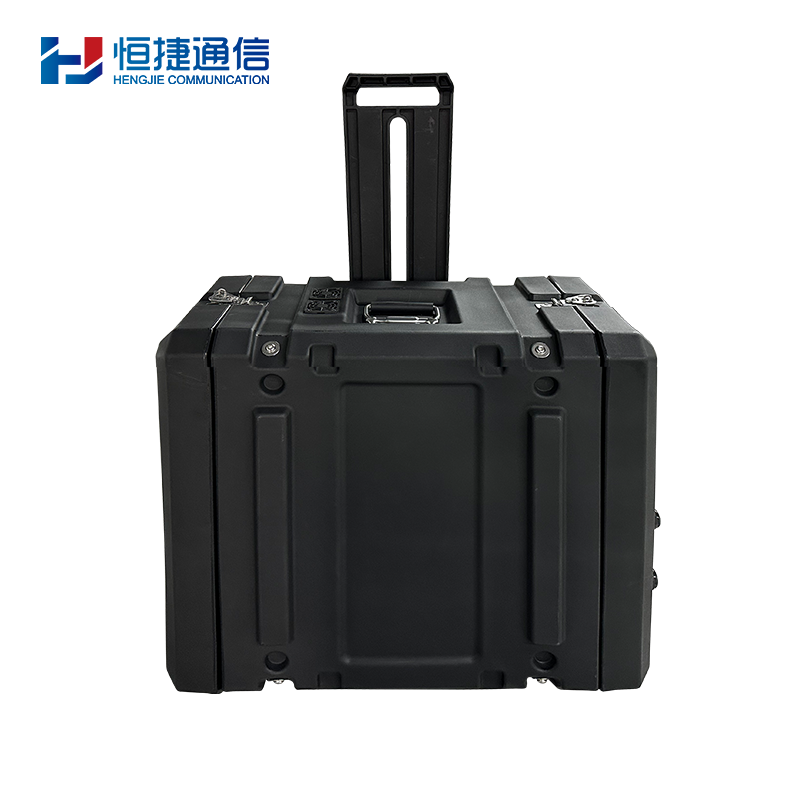

The HJ-GAN210BX portable communication device is an emergency communication support device equipped with two built-in A8010D integrated multiplexers and a managed backup power supply. The device uses a 4U trolley chassis, making it easy to carry, with good waterproof sealing and shock resistance. It is suitable for operation in various outdoor humidity environments, electromagnetic conditions, and mobile scenarios, making it an ideal dedicated emergency communication support device.

Message

Detailed introduction
Features
Product Configuration
Application Plan
Data Download

Commodity name: HJ-GAN210BX Portable Communication Device

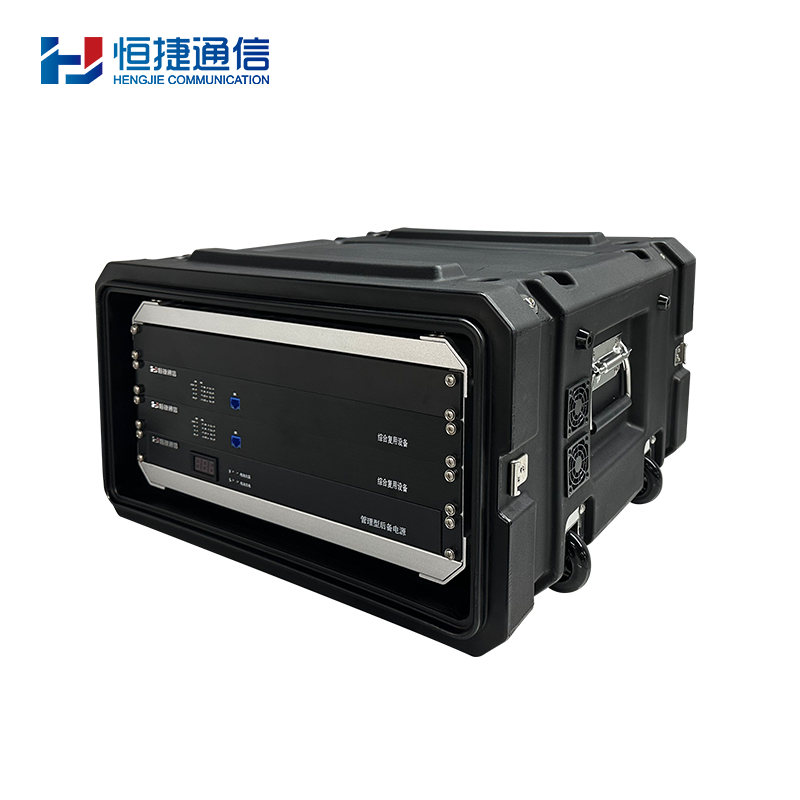

HJ-GAN210BX portable communication device is an emergency communication support device built with two A8010D integrated multiplexers and a managed backup power supply. The device uses a 4U trolley chassis, which is easy to carry, has good waterproof sealing performance, and strong shock resistance. It is suitable for operation in various outdoor humidity environments, electromagnetic environments, and mobile conditions, making it an ideal dedicated emergency communication support device.

A8010D Integrated Multiplexer

The A8010D integrated multiplexer is a multiplexing device designed for remote access of traditional TDM services and broadband IP data services, positioned at the metropolitan area network terminal access layer. On the line side, it uses PDH optical interfaces or E1 ports for uplink, and on the branch side, it provides various access methods such as ASL, FXS, FXO, and Ethernet, meeting the needs of operators' large customers and private network users for different bandwidth levels and multi-service access.

The A8010D integrated multiplexer adopts dual AC power supply mode, with PDH optical interface or E1 interface using 1+1 protection mode, providing up to 30 user services.

The A8010D integrated multiplexer, together with the iAN8200's FX4 (PDH) or E1-16 (E1 circuit), forms the basic system and can also be used for point-to-point connections.

The A8010D integrated multiplexer combines comprehensive OAM management functions with unique remote network management technology to achieve full network management of access layer devices, enhancing operators' management and control capabilities over the access layer network.

Managed Backup Power Supply

The managed backup power supply is specially designed to provide reliable emergency power for low-power communication equipment, with an output power of DC-48V. This device supports real-time charging, battery voltage and charge/discharge data collection, and the panel displays various working statuses in real time. It features low voltage alarm, undervoltage protection, and other functions. Through a communication serial port interfacing with network management software, it realizes network management functions and can read battery voltage and charge/discharge status information online. The device is safe, reliable, stable in performance, and economical.

A8010D Integrated Multiplexing Equipment

Based on telecom-grade product design, the line side provides 1-2 PDH optical ports or multiple E1 electrical ports, capable of realizing 1+1 protection function;
Provides ≤30 user services;
Telecom-grade voice quality, fast fax speed, clear characters. Supports caller ID and reverse charging signals;
Supports user cable self-test function, detecting open circuit, short circuit, parallel connection, off-hook status, and electrical performance;
AC 220V dual power supply mode, achieving 1+1 hot backup for power supply;
The device provides complete alarm and status indicator lights, including optical port alarm, E1 alarm, power status, device operation status, network management connection status, Ethernet connection status, and telephone link status;
Each interface has good overcurrent, overvoltage, and lightning protection. According to ITU-T K.20 standards for lightning surge, power induction test, and power contact test, the circuit can automatically recover after surge release;
The device provides complete alarm and status indicator lights, including optical port alarm, E1 alarm, power status, device operation status, network management connection status, Ethernet connection status, and telephone link status;
Comprehensive network management functions, real-time monitoring of various device operating statuses;

Managed backup power supply

Output voltage: DC48V, battery capacity 2.6AH;
Power output interface has good overcurrent, overvoltage, and reverse connection protection;
Supports real-time monitoring of battery voltage, battery capacity, charge and discharge status, etc., displayed in real-time via indicator lights or network management platform;
Supports online upgrade;
Supports network management functions and integrates with the A8010D Integrated Multiplexing Equipment unified network management platform;
