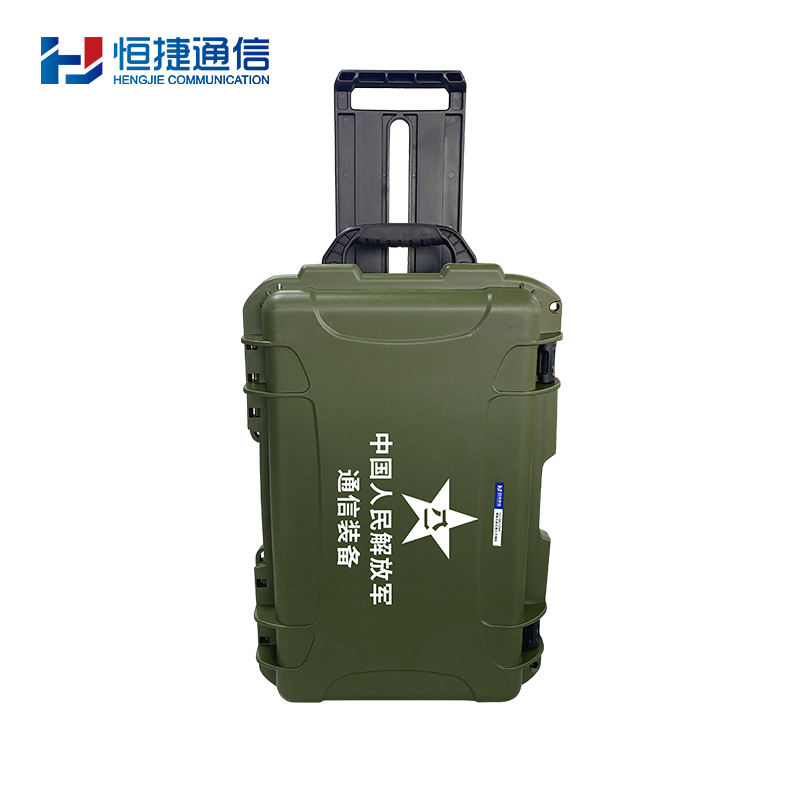

Commodity name: HJ-iAN210BX Portable Optoelectronic Integrated Access Optical Terminal

HJ-iAN210BX It is a portable, optoelectronic integrated comprehensive access optical terminal based on SDH and PCM technology. The device's transmission line side can provide 2 STM-1 SDH optical ports, and the service side can provide 10M/100M EOS Ethernet interfaces, E1 interfaces, V.24 interfaces, FXO interfaces, FXS interfaces, and MAG interfaces. The 10M/100M EOS Ethernet service bandwidth is adjustable in 2M steps, flexibly set within the range of 2M to 100M.

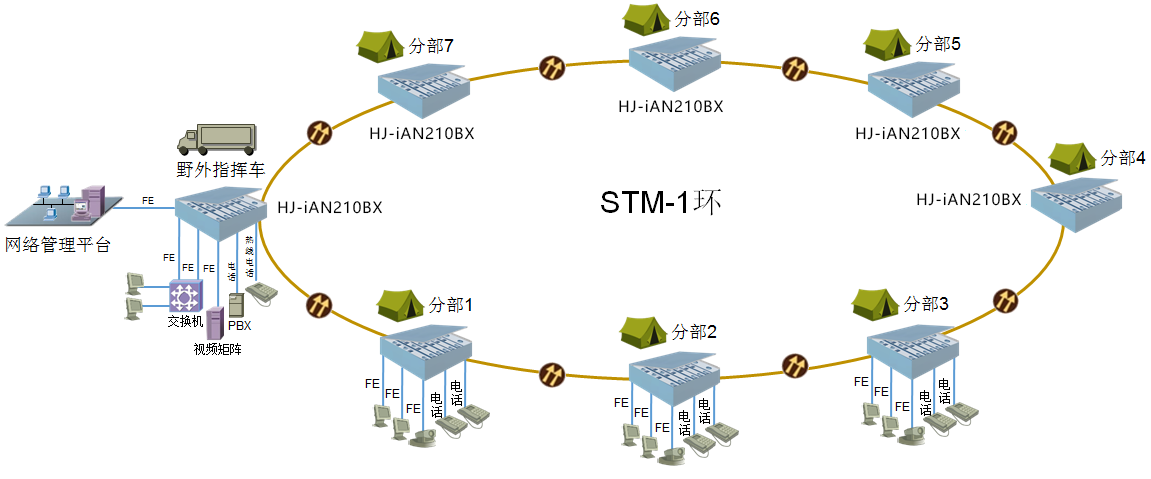

The HJ-iAN210BX offers flexible networking modes, capable of constructing various network topologies such as point-to-point, point-to-multipoint, chain network, and ring network. The SDH optical ports of the HJ-iAN210BX can interoperate with SDH optical ports from other manufacturers that comply with relevant standards. The signaling formats of FXO, FXS, and MAG service interfaces are configurable, allowing hybrid networking with mainstream PCM products both domestically and internationally.

The HJ-iAN210BX provides multiple security protection mechanisms, including 1+1 protection for optical lines, optical line ring network protection, 1+1+1 power supply protection with two external power inputs and one built-in lithium battery, surge protection, anti-static protection, vibration resistance, moisture protection, and dust and sand protection.

HJ-iAN210BX is mainly targeted at dedicated network users such as the military, armed police, public security, and fire departments, and has been widely applied in field training, emergency support, stability maintenance and incident response, as well as disaster relief scenarios.

The device uses a portable chassis, which is compact and lightweight, allowing it to be pulled or carried.
The chassis has dustproof and moisture-proof functions, and the device as a whole adopts shock-resistant design, making it safe and reliable.

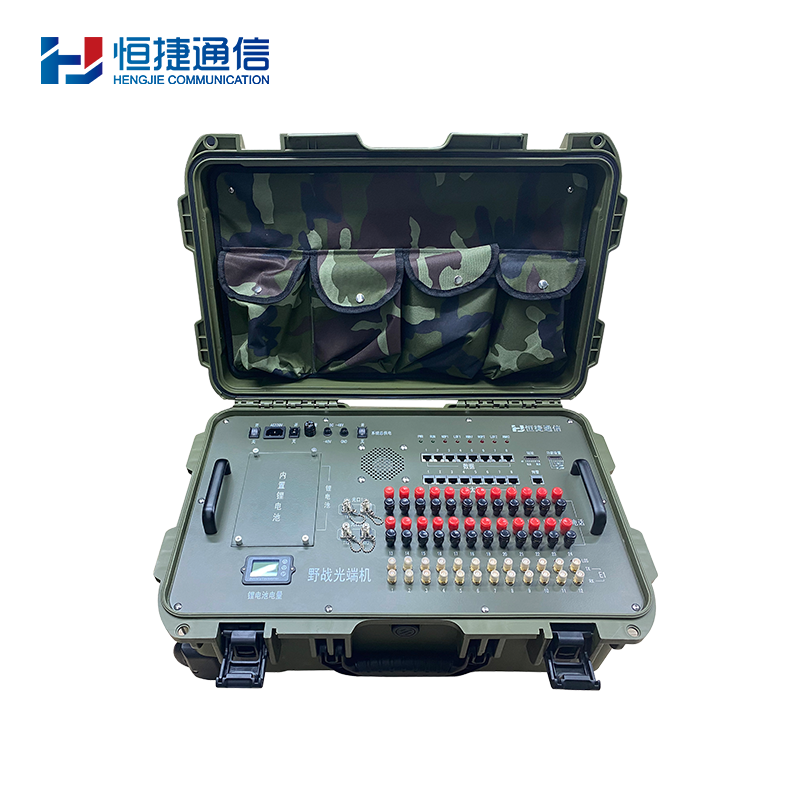

All interfaces and indicator lights of the device are located on the main panel inside the chassis, making operation simple.
The device has two built-in cooling fans, with one air inlet and one air outlet on the main panel for efficient heat dissipation.
The device transmission line provides 2 STM-1 level SDH optical ports with a rate of 155M, FC type interface.
The device business side can provide 12 unbalanced 75-ohm E1 service ports, using micro coaxial connectors.
The device business side can provide 32 telephone service ports, selectable FXO, FXS, and MAG, using RJ11 interfaces or push-type terminals.
The device business side can provide 8 V.24 low-rate data service ports, using RJ45 interfaces.
The device business side can provide 4 EOS channels and 8 10/100M Ethernet service ports, using RJ45 interfaces. Among them, EOS channels 1 to 3 correspond to Ethernet ports 1 to 3, providing highly secure channel-isolated Ethernet; the 4th EOS channel, after switching, provides 5 Ethernet ports (ports 4 to 8) at 10/100M.
The device supports point-to-point, point-to-multipoint, chain, and ring networking, or mixed networking with other SDH devices.
Both FXS and MAG modules adopt independent ringing current circuit design, which do not interfere with each other and have high security.
The device circuit adopts surge protection and lightning protection design, supporting reverse polarity protection for power input.
The device provides complete alarm and status indicator lights, indicating optical port alarms, E1 alarms, power status, device operation status, network management connection status, Ethernet connection status, and telephone link status, etc.
The device offers three power supply methods, including AC external input power, DC external input power, and built-in lithium battery, achieving 1+1+1 hot backup for power supply.
When powered by AC or DC external input power, the device also charges the built-in lithium battery simultaneously.
Without external input power, the built-in lithium battery can continuously power the device for at least 8 hours.
The device provides an Ethernet management interface, allowing management of the device and network through network management software, which mainly includes five functional modules: configuration management, resource management, alarm management, performance management, and security management.
Loopback settings for 64K channels, VC12 (E1), and optical channels can be configured through the network management software.
The network management software can perform error testing on the provided 64K channels and E1 channels.
