- Commodity name: HJ-GAN405

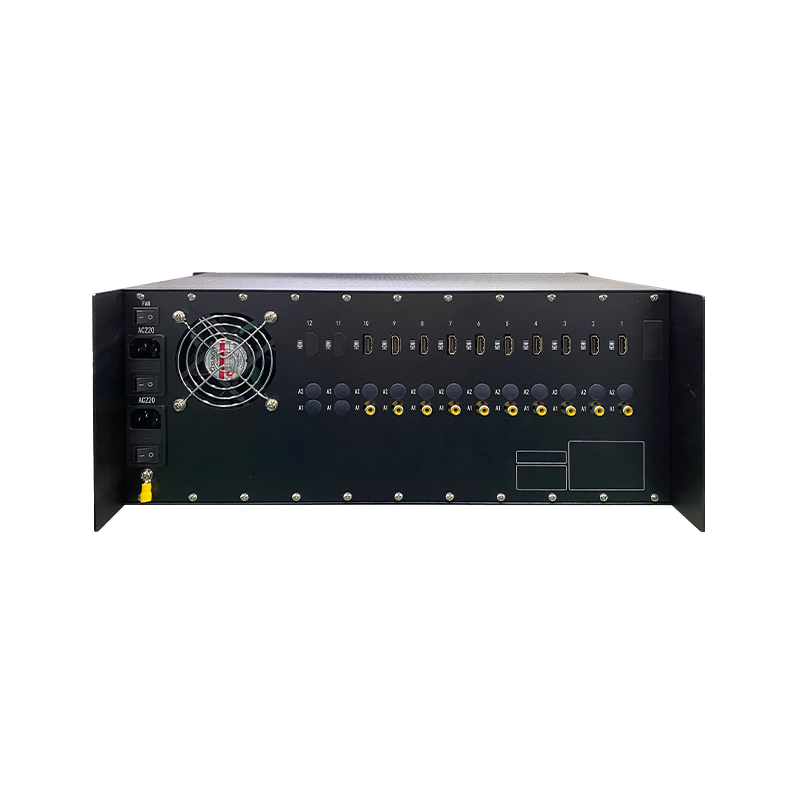

The HJ-GAN405 series centralized HD video optical terminal is a 4U rack-mounted full digital fiber optic transmission device independently developed and produced by our company. It enables unified management of equipment in the central equipment room.

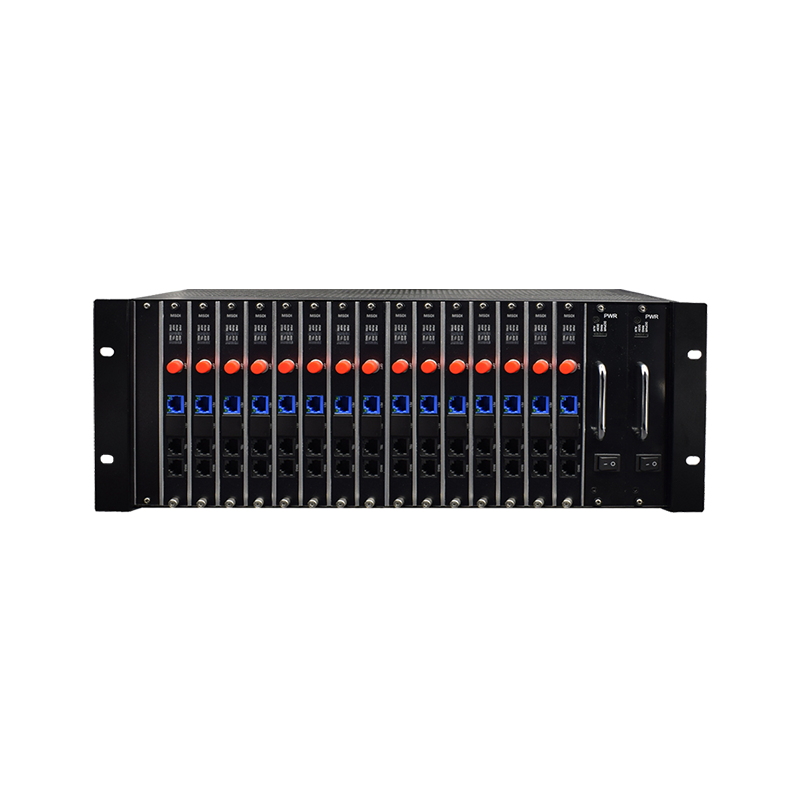

Standard 4U chassis with plug-in card design, providing 16 service slots + 1 network management slot + (1~2) power supply slots. The 16 service slots can be mixed with various video optical terminal cards according to customer needs. All modules inside the chassis support hot swapping, allowing replacement of any faulty card without power off, thereby improving system reliability and maintainability.
The HJ-GAN405 series star-type video optical terminal is widely used in security systems, intelligent transportation systems (ITS), highway video surveillance systems, social security monitoring, power/water safety monitoring systems, high-fidelity video conferencing systems, public security level 3/4 networks, broadcasting and television systems, coal mine safety monitoring systems, and more.
1. Supports video, audio, data, telephone, Ethernet, E1 (G.703), etc. simultaneously;
2. Supports high-definition video SDI, HDMI, DVI/VGA, etc. simultaneously;
3. Supports two-way video, two-way audio, two-way data, etc.;
4. Modular design, easy to expand and maintain;
5. Gigabit fiber optic transmission, large capacity, easy to upgrade;
6. Fully digital, uncompressed transmission;
7. Automatically compatible with PAL, NTSC, SECAM video standards;
8. Optional 1+1 dual power backup, optional AC/DC power supply;
9. No intermodulation interference from frequency modulation, phase modulation, or amplitude modulation;
10. 19-inch 4U aluminum profile chassis.
