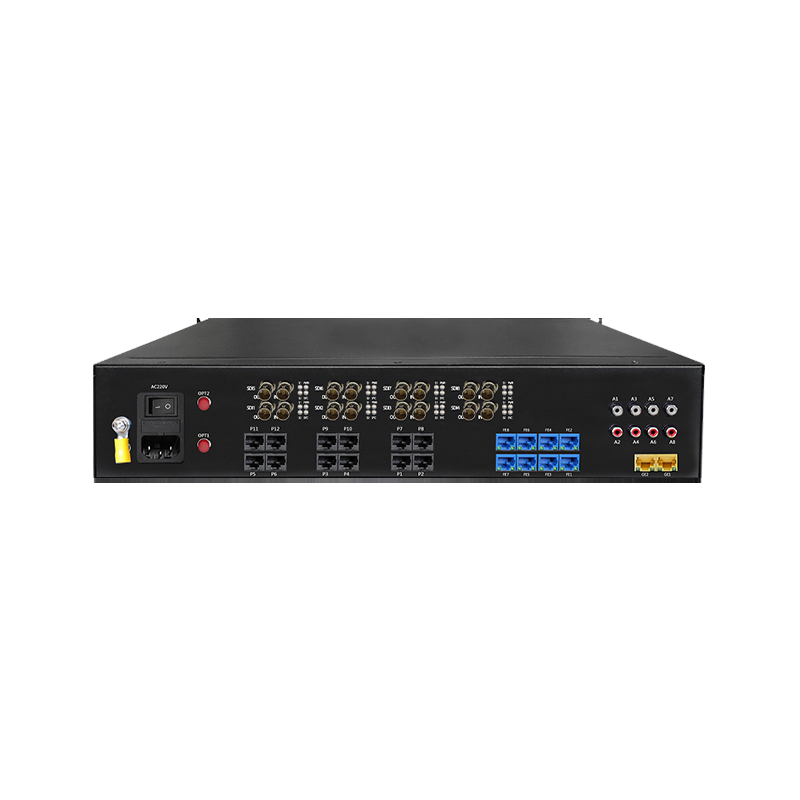

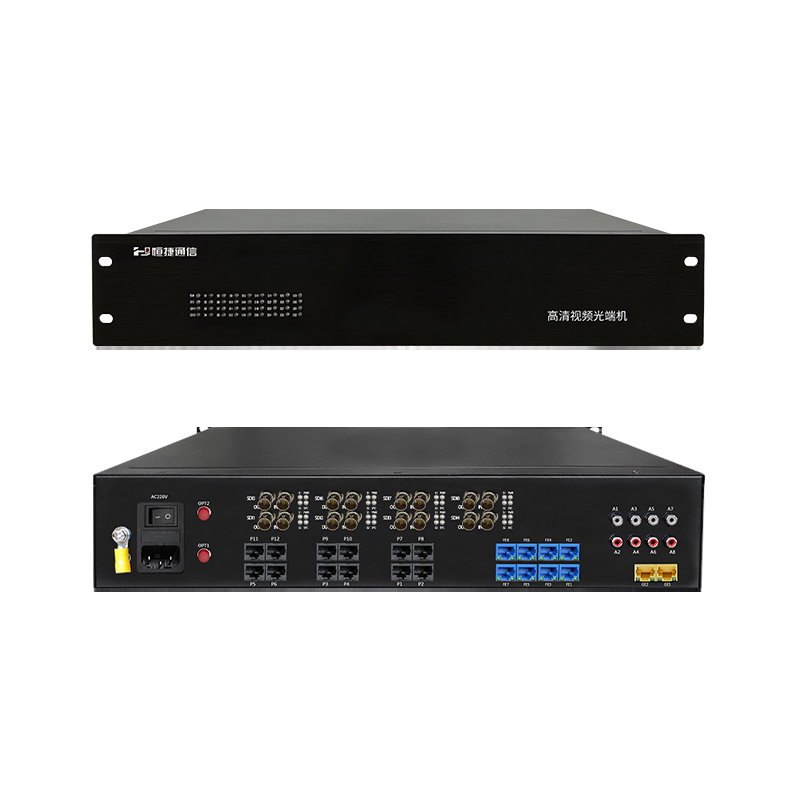

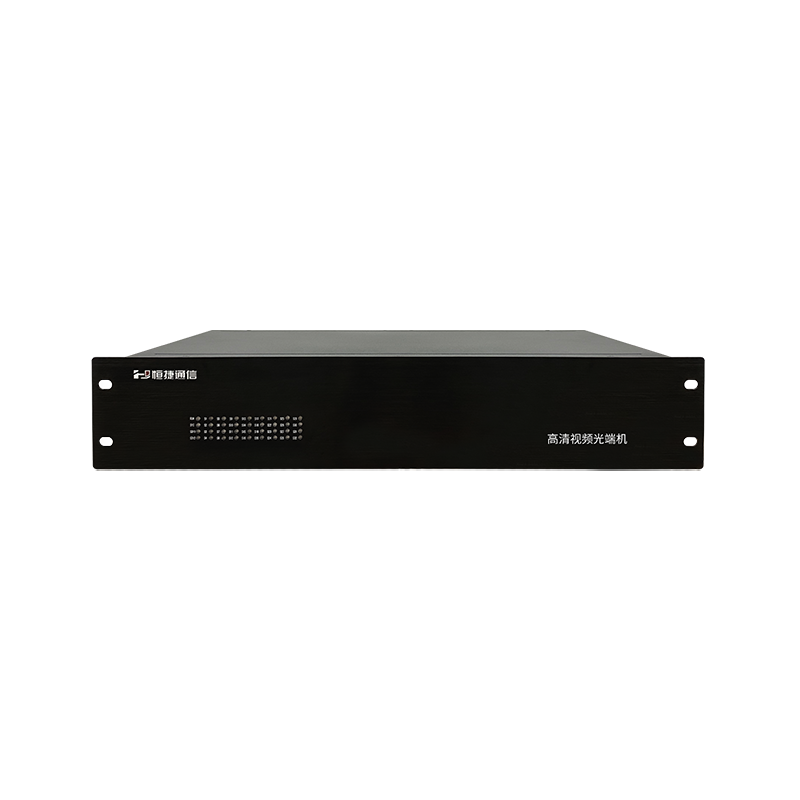

HJ-GAN-SDI08D

The HJ-GAN-SDI08D HD video optical transceiver supports simultaneous transmission of 8 or 4 channels of bidirectional uncompressed SDI + audio + data and other multiple services. This series of optical transceivers is independently developed by our company, adopting full digital, uncompressed, high-definition, and lossless fiber optic transmission. In addition to transmitting serial digital video signals, the HJ-GAN-SDI08D multi-service HD video optical transceiver can also simultaneously transmit analog composite video, analog stereo audio, bidirectional RS-232/485/422 data, 10/100/1000M Ethernet, telephone, magnetic, and switch signals.

Message

Detailed introduction
Features
Product Configuration

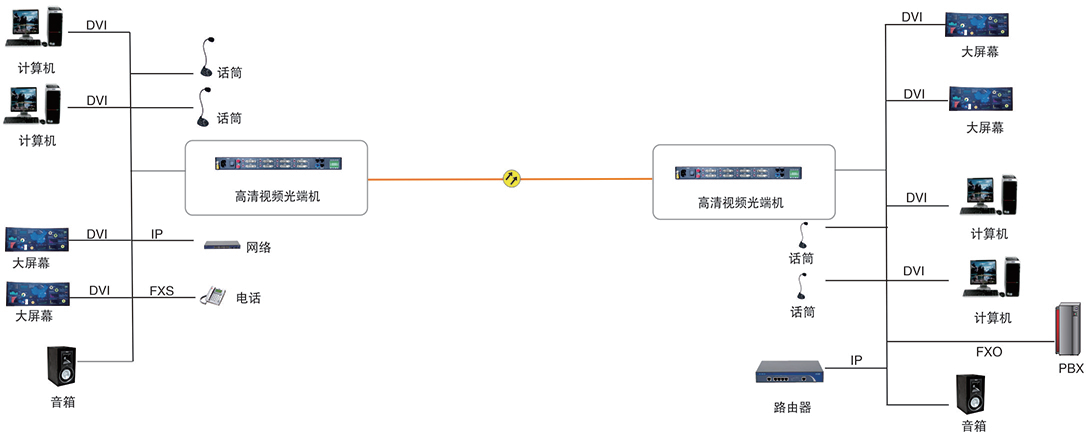

Application Plan
Data Download

Commodity name: HJ-GAN-SDI08D

HJ-GAN-SDI08D HD video optical transceiver achieves simultaneous transmission of 8 channels or 4 channels of bidirectional uncompressed SDI + audio + data and other multiple services. This series of optical transceivers is independently developed by our company, adopting full digital, uncompressed, high-definition, and lossless fiber optic transmission. In addition to transmitting serial digital video signals, the HJ-GAN-SDI08D multi-service HD video optical transceiver can also synchronously transmit analog composite video, analog stereo audio, bidirectional RS-232/485/422 data, 10/100/1000M Ethernet, telephone, magnetic, and switch signals.

1. Full digital, uncompressed, high-definition fiber transmission;

2. Supports 8 channels of unidirectional or 4 channels of bidirectional HDMI/DVI/SDI input and output interfaces;

3. Supports HDMI/DVI/SDI resolution formats, up to 4K×2K/30Hz/24bit;

4. Supports physically isolated gigabit and hundred-megabit Ethernet, bidirectional RS232/485/422, data, switch signals, telephone, magnetic signals, etc.;

5. Supports independent unbalanced analog stereo audio (RCA interface);

6. Device has built-in fan with automatic cooling function, 2U rack-mount.

Interface Type	Description
Video Interface	1~8, SDI Interface (4 channels bidirectional available)
Asynchronous Data Interface	1~2, RS485/RS232 Industrial Terminal
Telephone Interface	1~32, RJ45
Ethernet Interface	8 (100M) + 2 (1000M), RJ45
Audio Interface	1~8, RCA (4 channels bidirectional available)
Optional Interface	Network Management / Switch Quantity / Telephone / Magnetic / EM / Hotline, etc.
