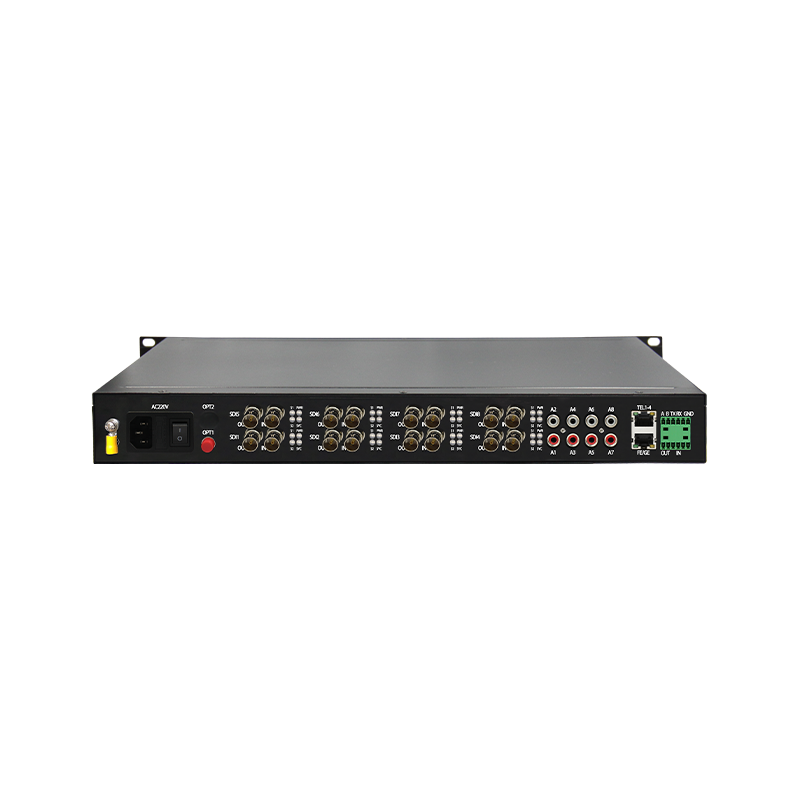

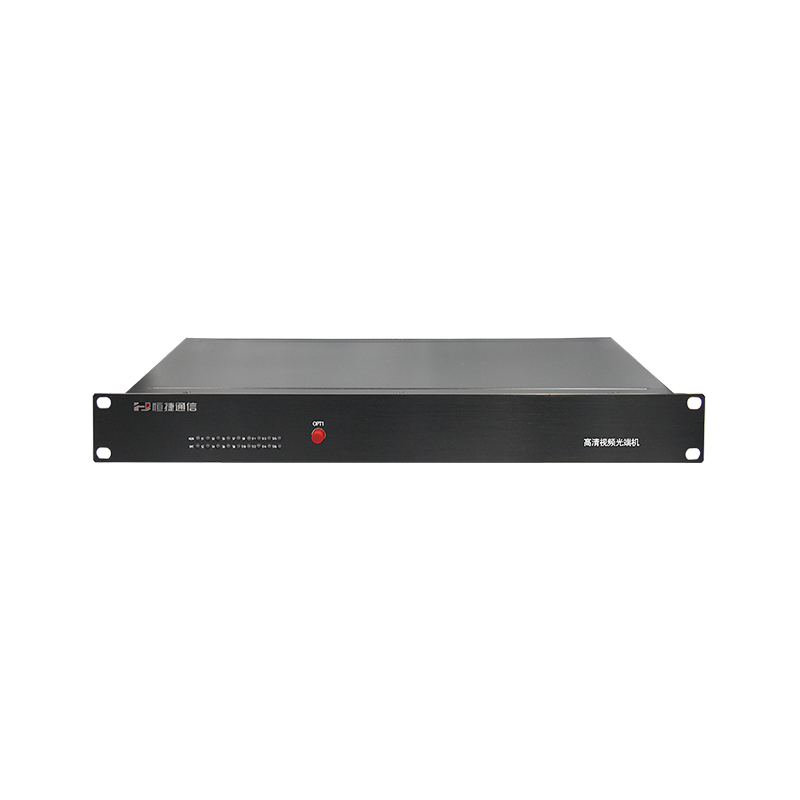

- Commodity name: HJ-GAN-SDI08
HJ-GAN-SDI08 multi-service high-definition video optical transceiver achieves simultaneous transmission of uncompressed SDI + audio + Ethernet + data + voice + switch signals and other multiple services. This series of optical transceivers is independently developed by our company, adopting full digital, lossless, high-definition, and distortion-free fiber optic transmission. In addition to transmitting serial digital video signals, the HJ-GAN-SDI08 multi-service high-definition video optical transceiver can also synchronously transmit analog composite video, analog stereo audio, bidirectional RS-232/485/422 data, 10/100/1000M Ethernet, telephone, magnetic, switch signals, and other signals.
1. All-digital, uncompressed, high-definition fiber optic transmission;
2. Supports 4 channels of unidirectional or bidirectional SDI input and output interfaces;
3. Supports resolutions 1920x1080/60p, 3840x2160/30p;
4. Supports serial rates: 143Mbps to 2.97Gbps;
5. Supports embedded digital stereo audio, bidirectional RS232/485/422 data, switch signals, telephone, magnetic signals, etc.;
6. Supports independent unbalanced analog stereo sound;
7. Fiber optic WDM, CWDM, DWDM technologies;
8. Single-mode and multimode fiber optic transmission;
9. No software configuration required, supports plug and play functionality, supports hot swapping;
10. Built-in surge and static protection, three-level lightning protection design;
11. Industrial-grade design, high reliability.
