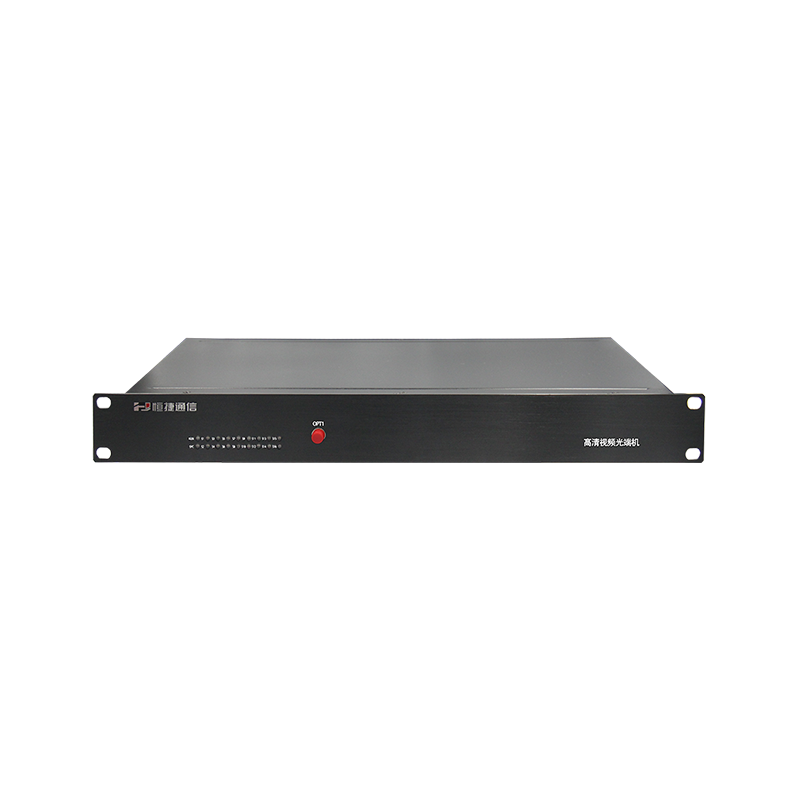

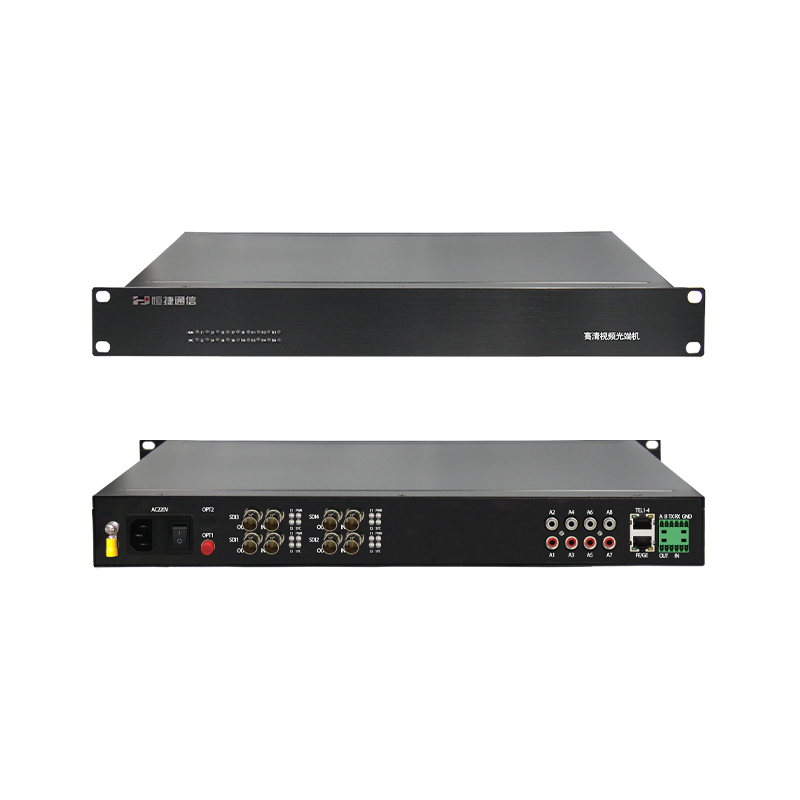

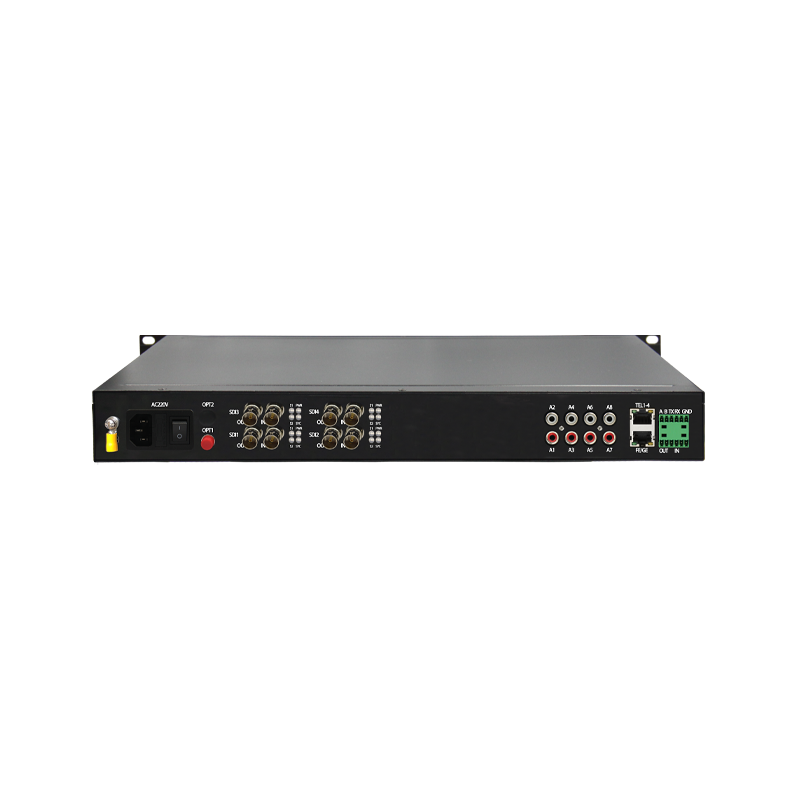

- Commodity name: HJ-GAN-SDI04
HJ-GAN-SDI04 HD video optical transceiver achieves simultaneous transmission of 4 channels or 2 channels of bidirectional uncompressed SDI + audio + data and other multiple services. This series of optical transceivers is independently developed by our company, adopting full digital, uncompressed, high-definition, and distortion-free fiber optic transmission. In addition to transmitting serial digital video signals, the HJ-GAN multi-service HD video optical transceiver can also simultaneously transmit analog composite video, analog stereo and digital stereo audio, bidirectional RS-232/485/422 data, 10/100/1000M Ethernet, telephone, magnetic, switch signals, and more.
1. All-digital, uncompressed, high-definition fiber optic transmission;
2. Supports 4 channels of unidirectional or 2 channels of bidirectional HDMI/DVI/SDI input and output interfaces;
3. Supports video formats: up to 1080P@60Hz resolution;
4. Supports serial rates: 143Mbps to 2.97Gbps;
5. Supports embedded digital stereo audio, bidirectional RS232/485/422 data, switch signals, telephone, magnetic signals, etc.;
6. Supports independent unbalanced analog stereo sound;
7. Fiber optic WDM, CWDM, DWDM technologies;
8. Single-mode and multimode fiber optic transmission;
9. No software configuration required, supports plug and play functionality, supports hot swapping;
10. Built-in surge and electrostatic protection, three-level lightning protection design;
11. Industrial-grade design, high reliability.
