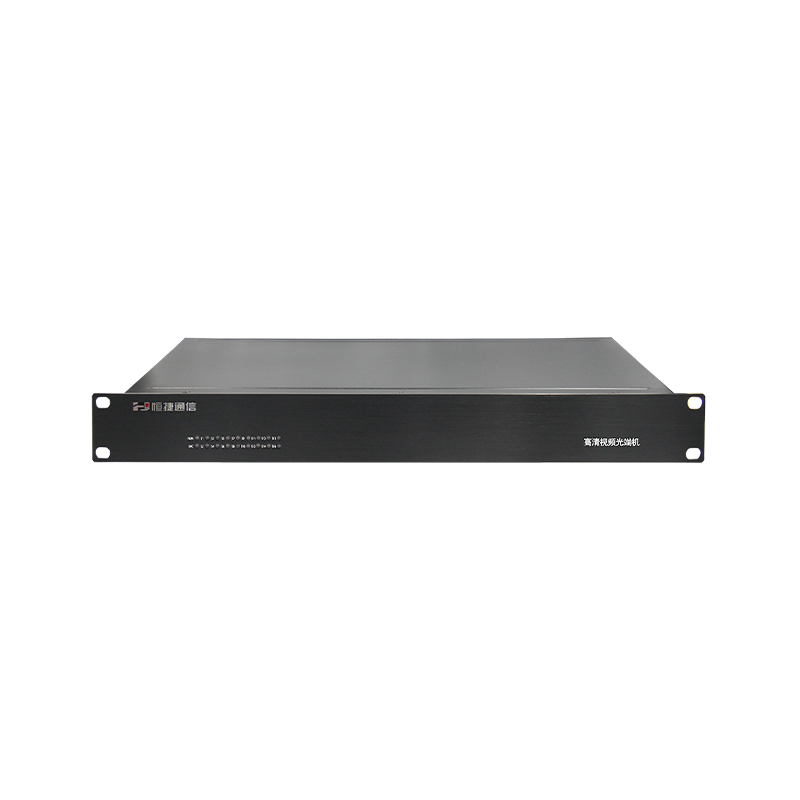

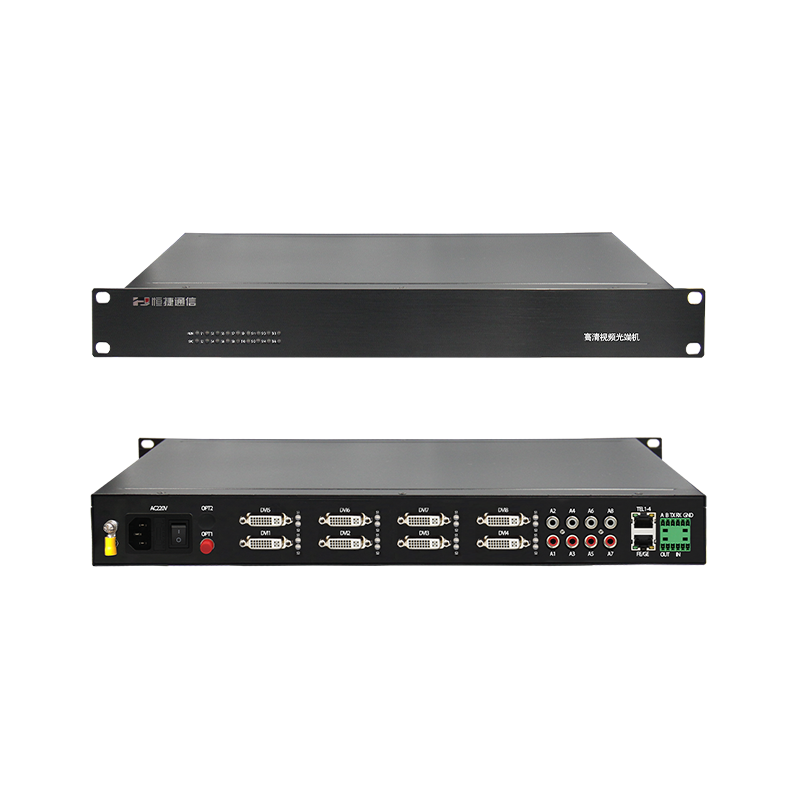

HJ-GAN-DVI08

HJ-GAN-DVI08 HD video optical transceiver supports simultaneous transmission of 8 or 4 channels of bidirectional uncompressed DVI + audio + data and various other services. This series of optical transceivers is independently developed by our company, using fully digital, uncompressed, high-definition, distortion-free fiber optic transmission. In addition to transmitting serial digital video signals, the HJ-GAN-DVI08 multi-service HD video optical transceiver can also simultaneously transmit analog composite video, analog stereo and digital stereo audio, bidirectional RS-232/485/422 data, 10/100/1000M Ethernet, telephone, magnetic, and switch signals.
  • Detailed introduction
  • Features
  • Product Configuration
  • Application Plan
  • Data Download
  • Commodity name: HJ-GAN-DVI08

HJ-GAN-DVI08 HD video optical transceiver supports simultaneous transmission of 8 channels or 4 channels of bidirectional uncompressed DVI + audio + data and various other services. This series of optical transceivers is independently developed by our company, using full digital, uncompressed, high-definition, and lossless fiber optic transmission. In addition to transmitting serial digital video signals, the HJ-GAN-DVI08 multi-service HD video optical transceiver can also simultaneously transmit analog composite video, analog stereo and digital stereo audio, bidirectional RS-232/485/422 data, 10/100/1000M Ethernet, telephone, magnetic, switch signals, and more.

1. All-digital, uncompressed, high-definition fiber optic transmission

2. Supports 8-channel unidirectional or 4-channel bidirectional DVI input/output interfaces

3. Supports video formats: up to 1080P@60Hz resolution

4. Supports serial rates: 143Mbps to 2.97Gbps;

5. Supports embedded digital stereo audio, bidirectional RS232/485/422 data, switch signals, telephone, magnetic signals, etc.

6. Supports independent unbalanced analog stereo sound

7. Fiber optic WDM, CWDM, DWDM technologies

8. Single-mode and multimode fiber optic transmission

9. No software design required, supports plug-and-play functionality, supports hot swapping

10. Built-in surge and electrostatic protection, three-level lightning protection design

11. Industrial-grade design, high reliability

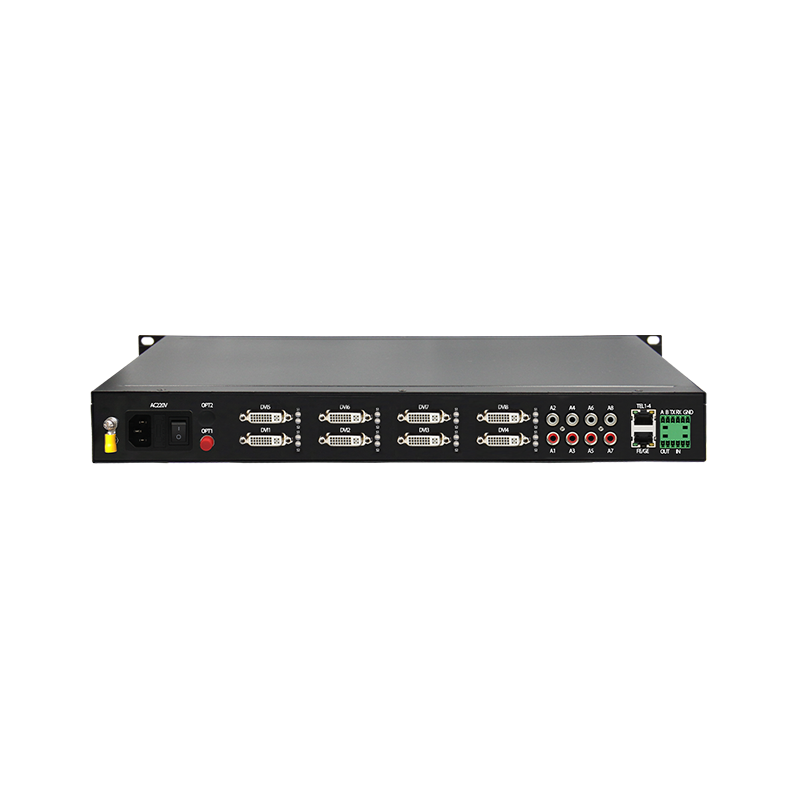

Interface Type

Description

Video Interface

1~8, DVI Interface (up to 4 dual-way)

Asynchronous Data Interface

1~2, RS485/RS232 Industrial Terminal

Telephone Interface

1~12, RJ45

Ethernet Interface

1, RJ45

Audio Interface

1~8, 3.5mm (dual-way)

Optional Interface

Network Management/Switching/Telephone/Magnet/EM/Hotline, etc.
