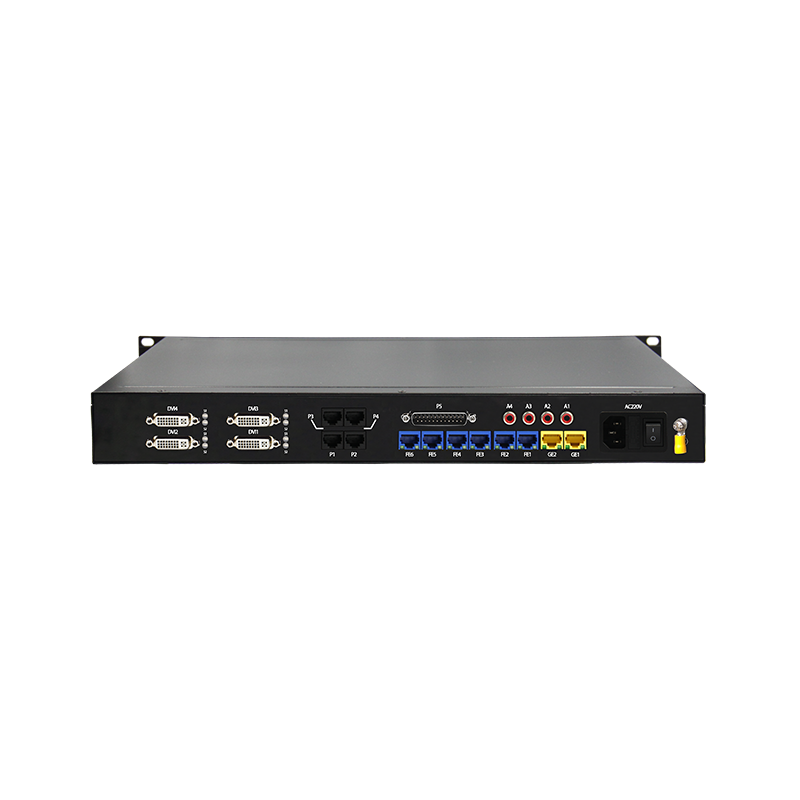

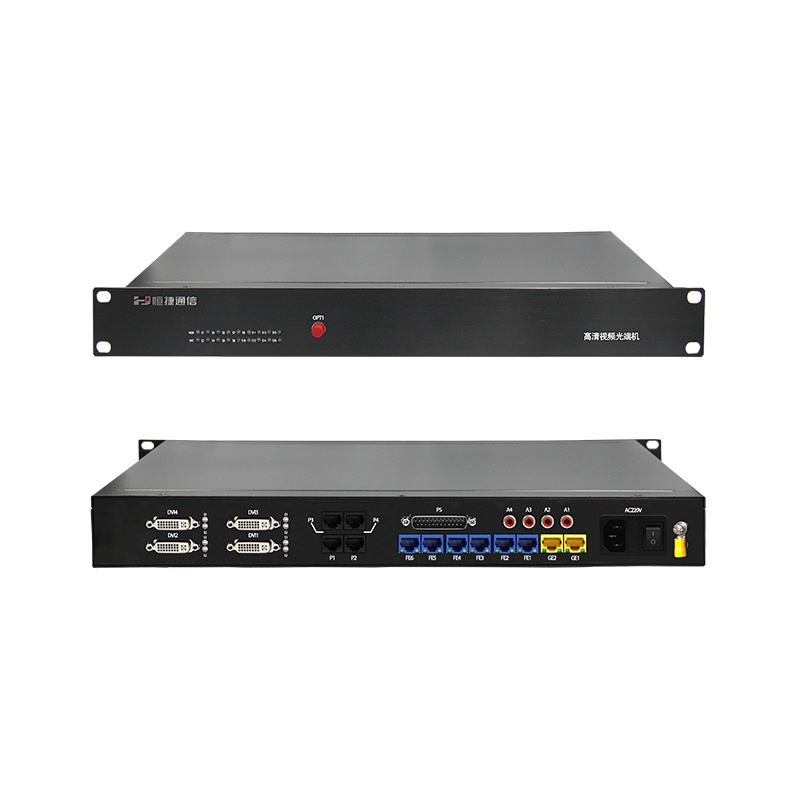

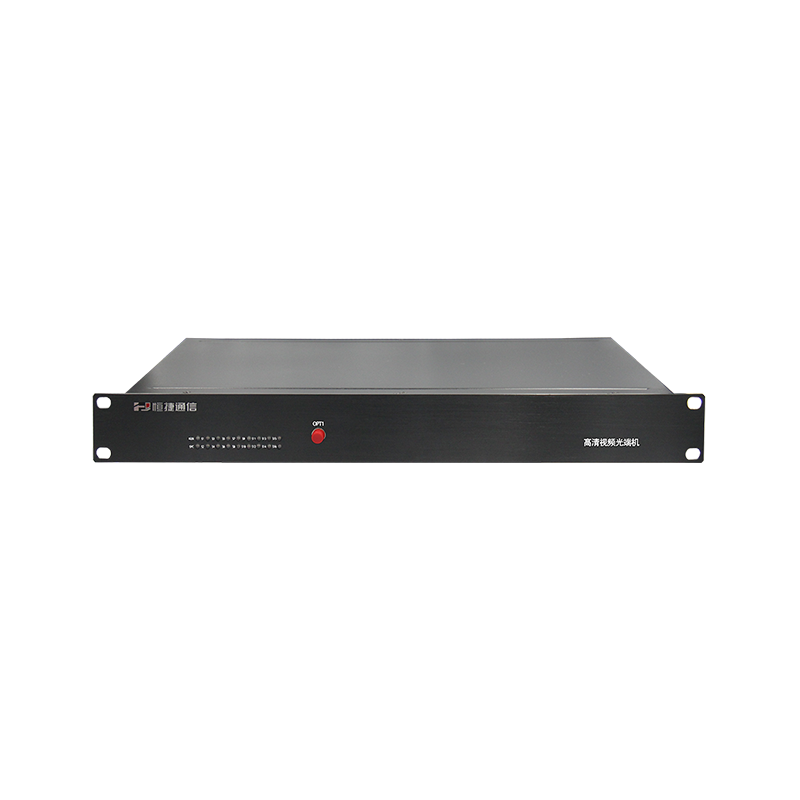

HJ-GAN-DVI04 HD video optical transceiver supports simultaneous transmission of 4 channels or 2 channels of bidirectional uncompressed DVI + audio + data and various other services. This series of optical transceivers is independently developed by our company, using full digital, uncompressed, high-definition, distortion-free fiber optic transmission. In addition to transmitting serial digital video signals, the HJ-GAN-DVI04 multi-service HD video optical transceiver can also simultaneously transmit analog composite video, analog stereo and digital stereo audio, bidirectional RS-232/485/422 data, 10/100/1000M Ethernet, telephone, magnetic, switch signals, and more.
1. All-digital, uncompressed, high-definition fiber optic transmission
2. Supports 4 channels of unidirectional or bidirectional DVI input and output interfaces
3. Supports video formats: up to 1080P@60Hz resolution
4. Supports embedded digital stereo audio, bidirectional RS232/485/422 data, switch signals, telephone, magnetic signals, etc.
5. Supports independent unbalanced analog stereo sound
6. Fiber optic WDM, CWDM, DWDM technologies
7. Single-mode and multi-mode fiber optic transmission
8. No software design required, supports plug and play functionality, supports hot swapping
9. Built-in surge and electrostatic protection, three-level lightning protection design
10. Industrial-grade design, high reliability
|
Interface Type |
Description |
|
Video Interface |
1~4, DVI Interface (Bidirectional) |
|
Asynchronous Data Interface |
1~2, RS485/RS232 Industrial Terminal |
|
Telephone Interface |
1~4, RJ45 |
|
Ethernet Interface |
1, RJ45 |
|
Audio Interface |
1~8, RCA (Bidirectional) |
|
Optional Interface |
Network Management / Switch Quantity / Telephone / Magnetic / EM / Hotline, etc. |
