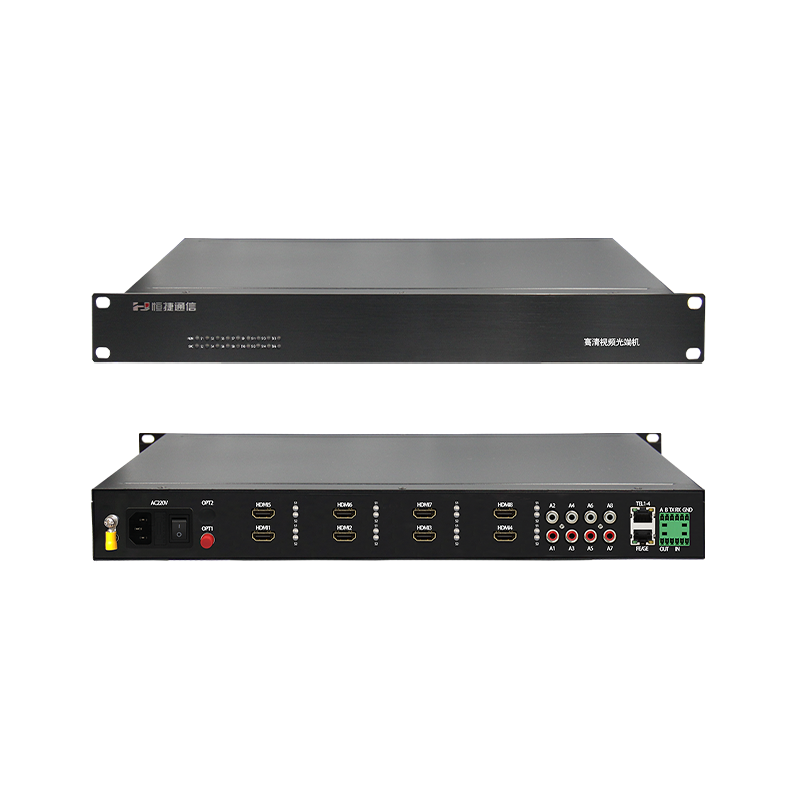

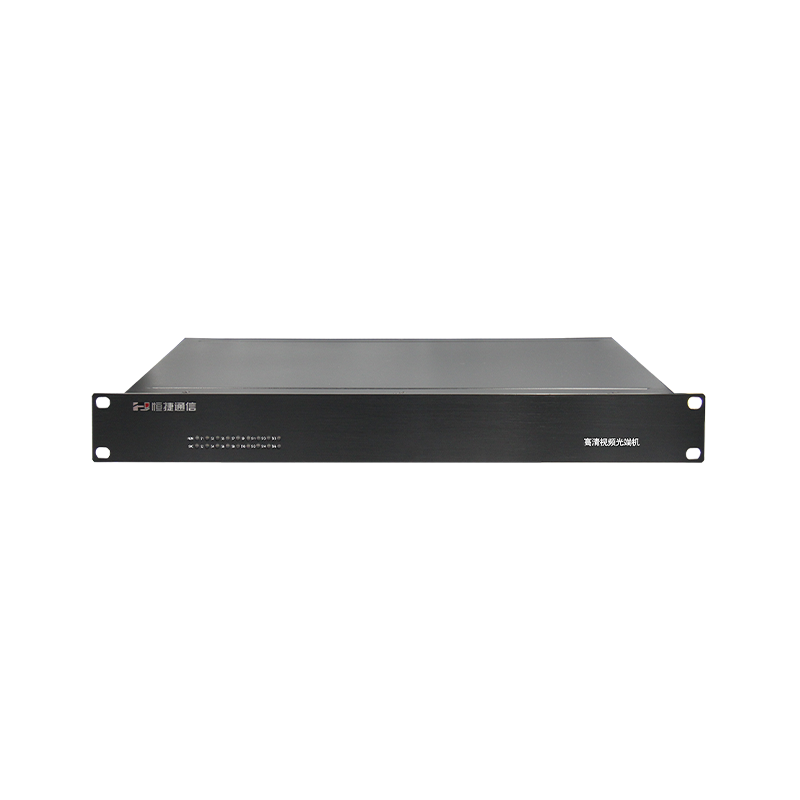

HJ-GAN-HDMI08 HD video optical transceiver achieves simultaneous transmission of 8 channels or 4 channels of bidirectional uncompressed HDMI + audio + data and other multiple services. This series of optical transceivers is independently developed by our company, adopting full digital, uncompressed, high-definition, and lossless fiber optic transmission. In addition to transmitting serial digital video signals, the HJ-GAN-HDMI08 multi-service HD video optical transceiver can also synchronously transmit analog composite video, analog stereo and digital stereo audio, bidirectional RS-232/485/422 data, 10/100/1000M Ethernet, telephone, magnetic, switch signals, and more.
1. All-digital, uncompressed, high-definition fiber optic transmission
2. Supports 8-channel unidirectional or 4-channel bidirectional HDMI input/output interfaces
3. Supports video formats: up to 1080P@60Hz resolution
4. Supports serial rates: 143Mbps to 2.97Gbps;
5. Supports embedded digital stereo audio, bidirectional RS232/485/422 data, switch signals, telephone, magnetic signals, etc.
6. Supports independent unbalanced analog stereo sound
7. Fiber optic WDM, CWDM, DWDM technologies
8. Single-mode and multimode fiber optic transmission
9. No software design required, supports plug-and-play functionality, supports hot swapping
10. Built-in surge and static protection, three-level lightning protection design
11. Industrial-grade design, high reliability
|

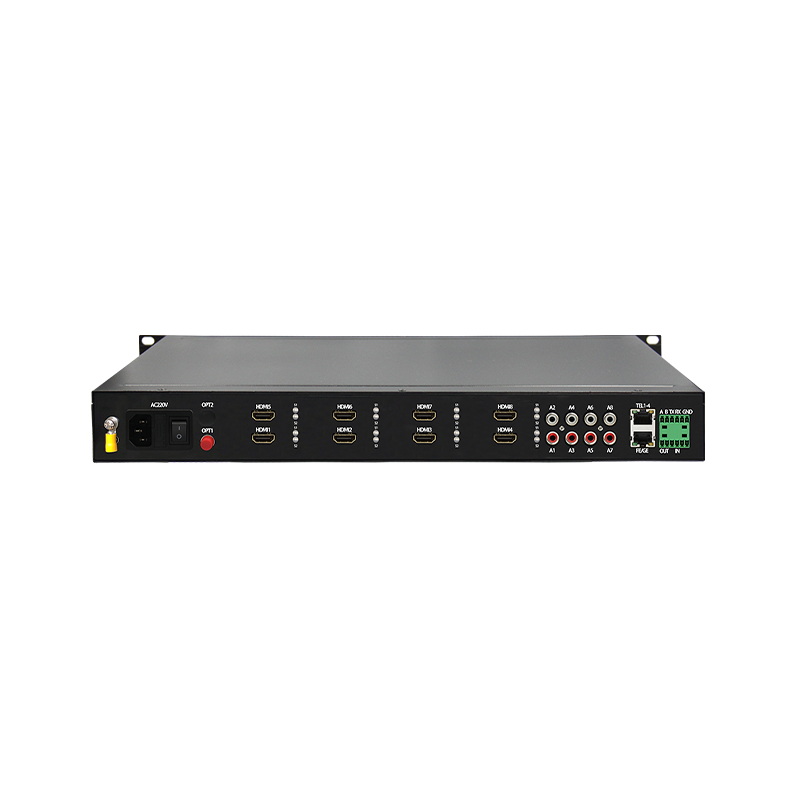

Interface Type |
Description |
|
Video Interface |
1~8, HDMI Interface (Bidirectional) |
|
Asynchronous Data Interface |
1~2, RS485/RS232 Industrial Terminal |
|
Telephone Interface |
1~12, RJ45 |
|
Ethernet Interface |
1, RJ45 |
|
Audio Interface |
1~8, RCA (Bidirectional) |
|
Optional Interface |
Network Management/Switching/Telephone/Magnet/EM/Hotline, etc. |
