HJ-GAN116S

The HJ-GAN116S 10G Multi-Service Optical Terminal is a physically isolated Ethernet fiber transmission device developed for systems such as high-definition video surveillance, high-definition video conferencing, and big data transmission. It supports multiple physically isolated 1000M/100M line-rate Ethernet data channels, E1, voice, asynchronous data RS485/422/232, and other services transmitted over fiber. This device is mainly used by public security, military, government private networks, operators, enterprises, and other users. The HJ-GAN116F 10G Multi-Service Optical Terminal adopts a 19-inch standard 1U structure design, making installation, debugging, and maintenance convenient.

Message

Detailed introduction
Features
Product Configuration

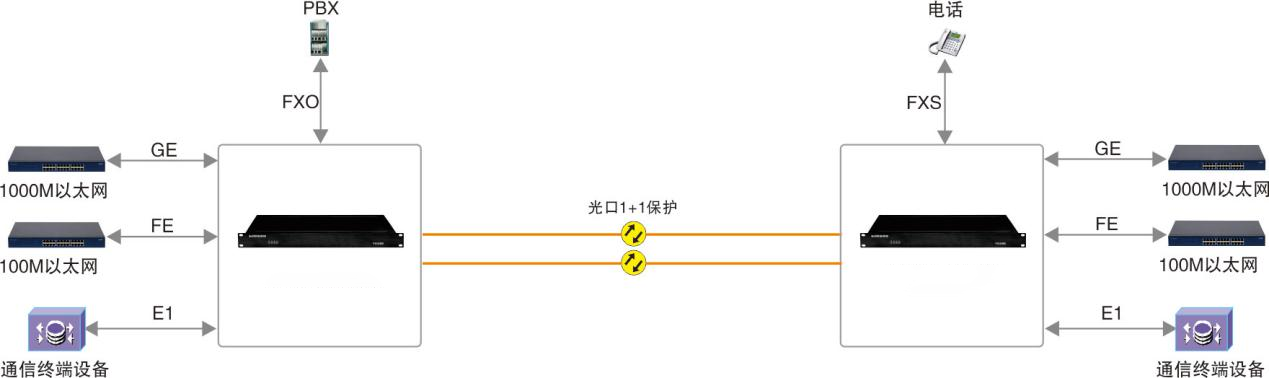

Application Plan
Data Download

Commodity name: HJ-GAN116S

HJ-GAN116S 10G Multi-Service Optical Terminal is a physically isolated Ethernet fiber transmission device developed for systems such as high-definition video surveillance, high-definition video conferencing, and big data transmission. It realizes multiple physically isolated 1000M/100M line-rate Ethernet data channels, E1, voice, asynchronous data RS485/422/232, and other services transmitted over fiber. This device is mainly used by public security, military, government private networks, operators, enterprises, and other users.

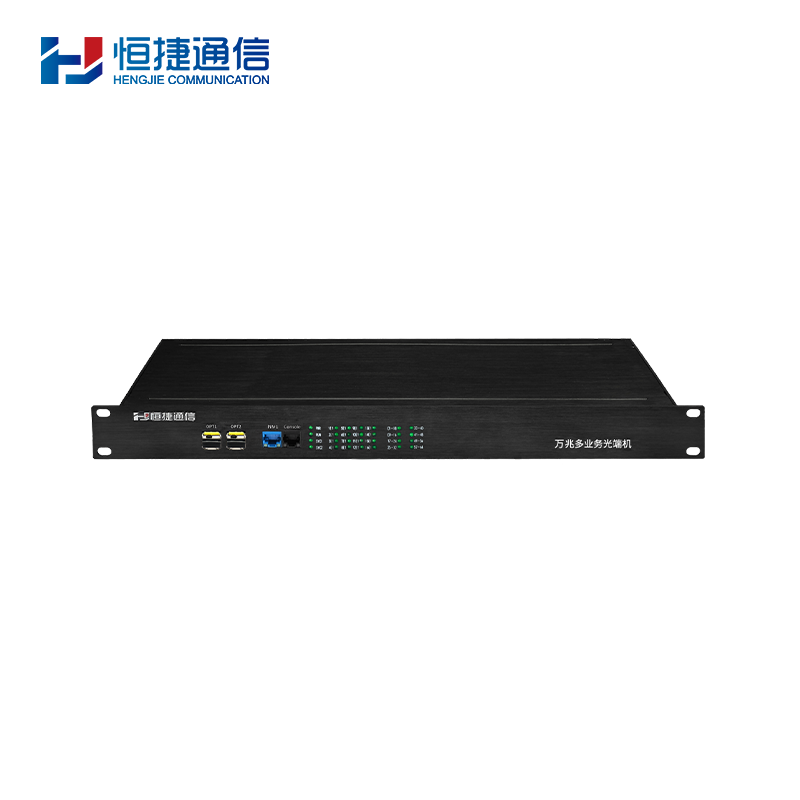

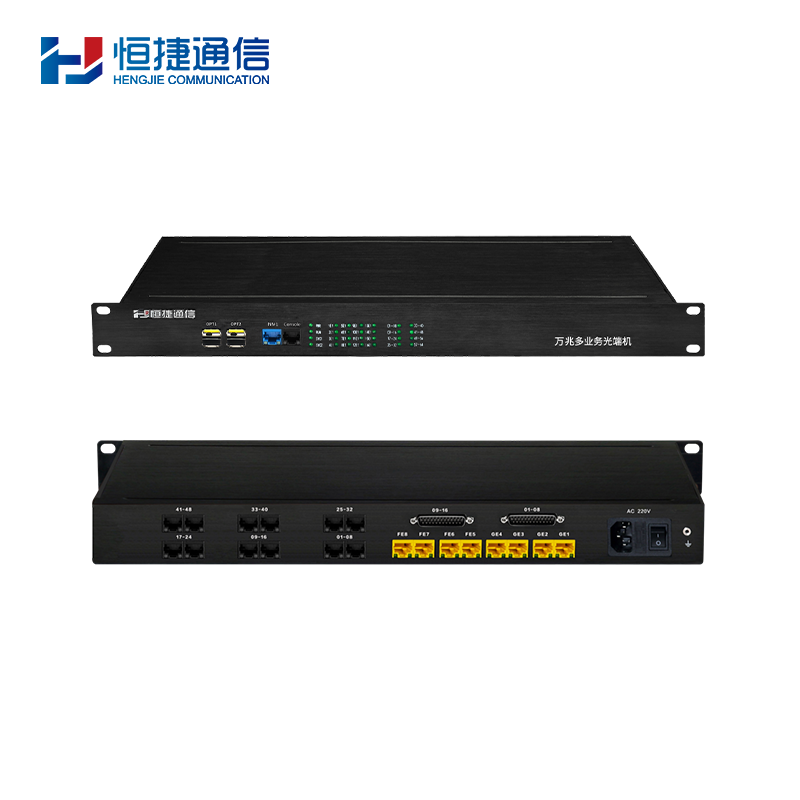

HJ-GAN116F 10G Multi-Service Optical Terminal adopts a 19-inch standard 1U structure design, making device installation, debugging, and maintenance convenient.

Supports Ethernet (100M/1000M), E1 (G.703), voice, asynchronous data, and other services simultaneously
Provides 8 Ethernet interfaces with 1000M bandwidth, all Ethernet ports are completely physically isolated
Provides 4 to 16 E1 (G.703) interfaces
Configurable FXO/FXS/magnet/four-wire audio/E&M/RS232/RS422/RS485/switch quantity according to user requirements
Telecom-grade voice quality, supports caller ID; reverse polarity billing signal (optional)
Provides comprehensive alarm indicators
Uses AC220V or DC-48V power supply
Has comprehensive network management functions, real-time monitoring of various device operating statuses (optional)
19-inch 1U aluminum profile chassis

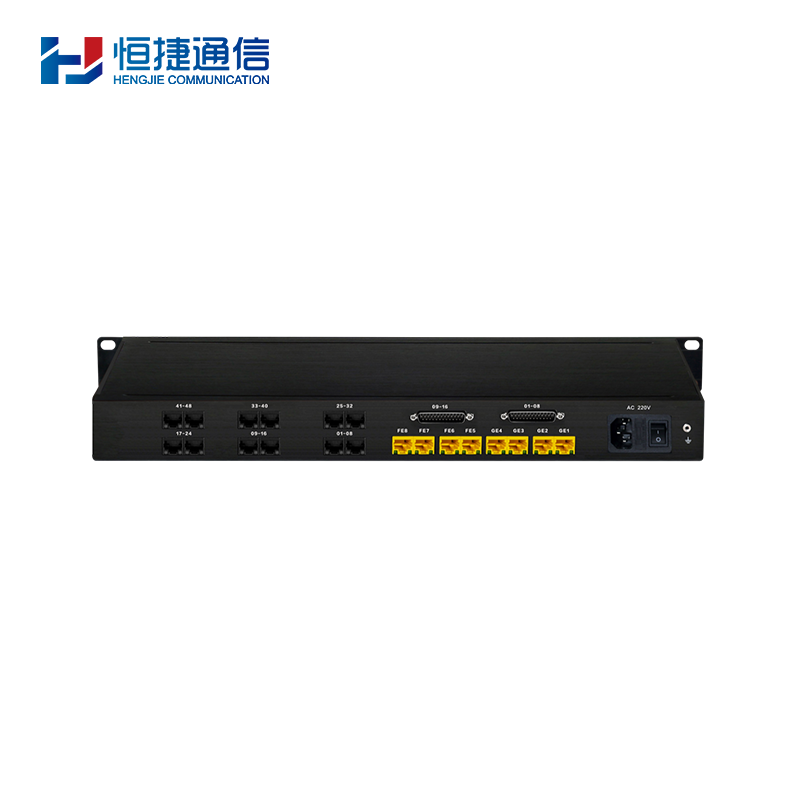

Interface Type	Description
1000M Ethernet	1~8, RJ45 (Optional)
E1 Interface	1~16, BNC Interface (DB25 to BNC) (Optional)
Telephone	8~48, RJ45 Interface (Optional)
Asynchronous Data	4~8 Channels RS485/422/232 (Optional)
Optional Interface	Network Management (Optional)
