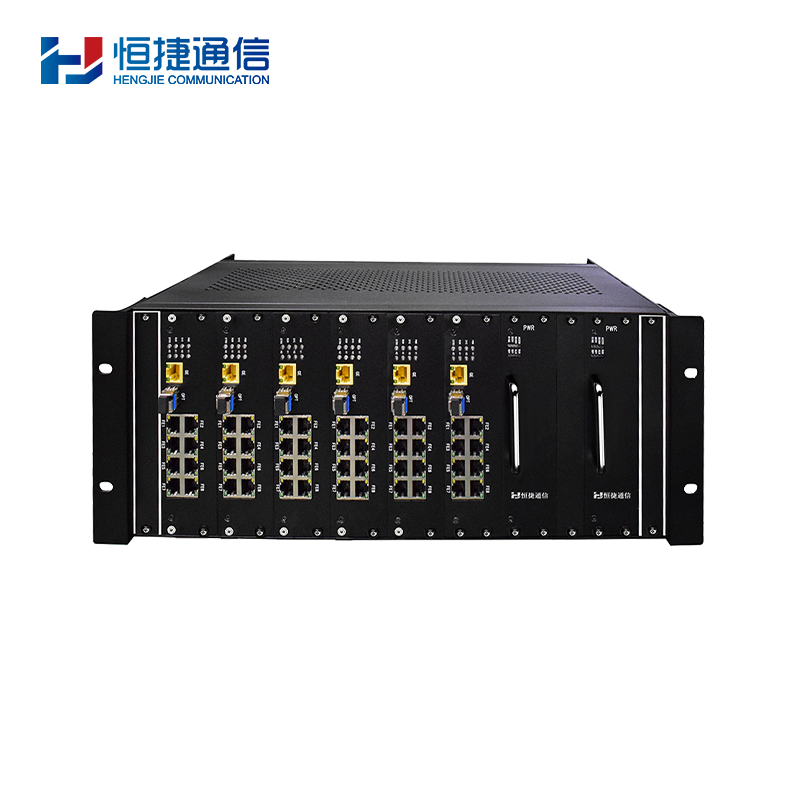

HJ-GAN403

The Gigabit multi-service optical terminal is a physically isolated Ethernet fiber transmission device developed for highway high-definition network camera systems. It uses a 2.5G transmission rate to achieve 1000M/100M line-rate Ethernet data channels, video, audio, and switch quantity hybrid multiplexing and transmission. It can meet the needs of large operator customers and private network users for different levels of bandwidth and multi-service access. The Gigabit multi-service optical terminal combines comprehensive OAM management functions with its unique remote network management technology to achieve full network management of access layer devices, enhancing operators' management and control capabilities over the access layer network. The Gigabit multi-service optical terminal adopts a 19-inch standard 4U structure design, and the star network topology can simultaneously transmit services in 6 directions, greatly reducing line resources.

Message

Detailed introduction
Features
Product Configuration
Application Plan
Data Download

Commodity name: HJ-GAN403

The Gigabit Multi-Service Optical Terminal is a physically isolated Ethernet fiber transmission device developed for highway high-definition network camera systems. It uses a 2.5G transmission rate to achieve 1000M/100M line-rate Ethernet data channels, video, audio, and switch quantity hybrid multiplexing and transmission. It can meet the needs of large carrier customers and private network users for different levels of bandwidth and multi-service access. The Gigabit Multi-Service Optical Terminal combines comprehensive OAM management functions with its unique remote network management technology to achieve full network management of access layer devices, enhancing the carrier's management and control capabilities over the access layer network.

The Gigabit Multi-Service Optical Terminal adopts a 19-inch standard 4U structure design. The star network topology can simultaneously transmit services in 6 directions, greatly reducing line resources.

1. All interface technical parameters comply with relevant international or domestic standards.

2.5G optical fiber capacity, high integration, modular design, easy expansion and upgrade, configurable with various functional service cards according to requirements.

3. Supports simultaneously 1 channel of 1000M Ethernet, 8 channels of 100M Ethernet physical isolation, 2 channels of forward video, 2 channels of two-way audio, and 2 channels of two-way switch quantity.

4. All Ethernet ports are completely physically isolated.

5. Each interface has surge and three-level lightning protection. It passes ITU-T K.20 tests for lightning impulse, power induction, and power contact; after circuit impulse release, it can automatically recover.

6. Supports user customization and OEM methods.

7. Comprehensive network management functions, real-time monitoring of various device operating statuses (optional).

Board Card Type	Interface Type	Description
Network Management Board Card	Optional Interface	Network Management
GAN403 Board Card		1 channel 1000M Ethernet, 8 channels 100M Ethernet physical isolation, 2 channels forward video, 2 channels two-way audio, and 2 channels two-way switch quantity
Power Supply Panel	AC Access	7~8 slot AC power supply panel (1+1 protection)
