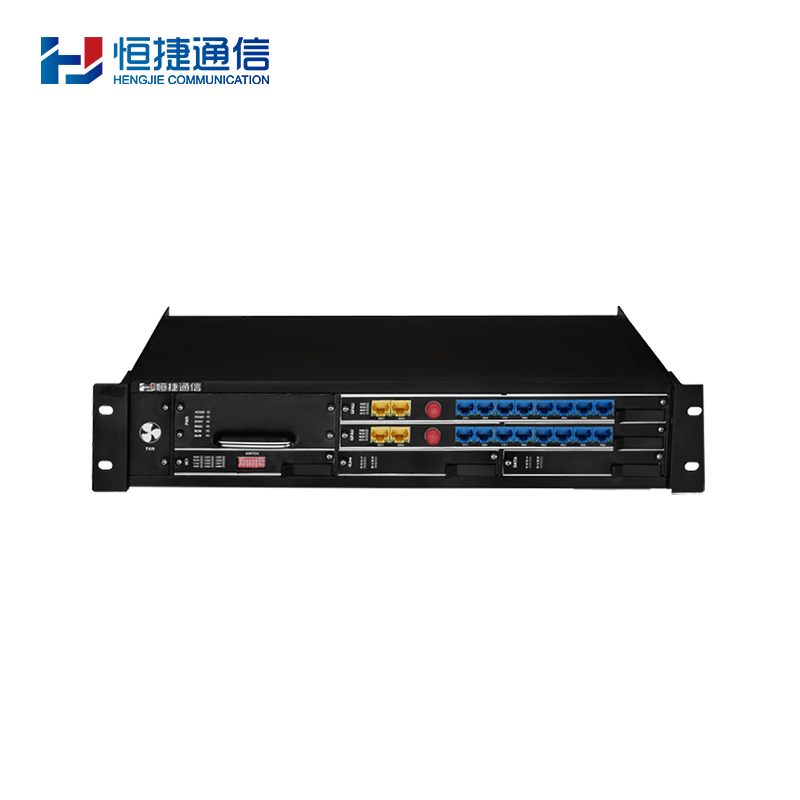

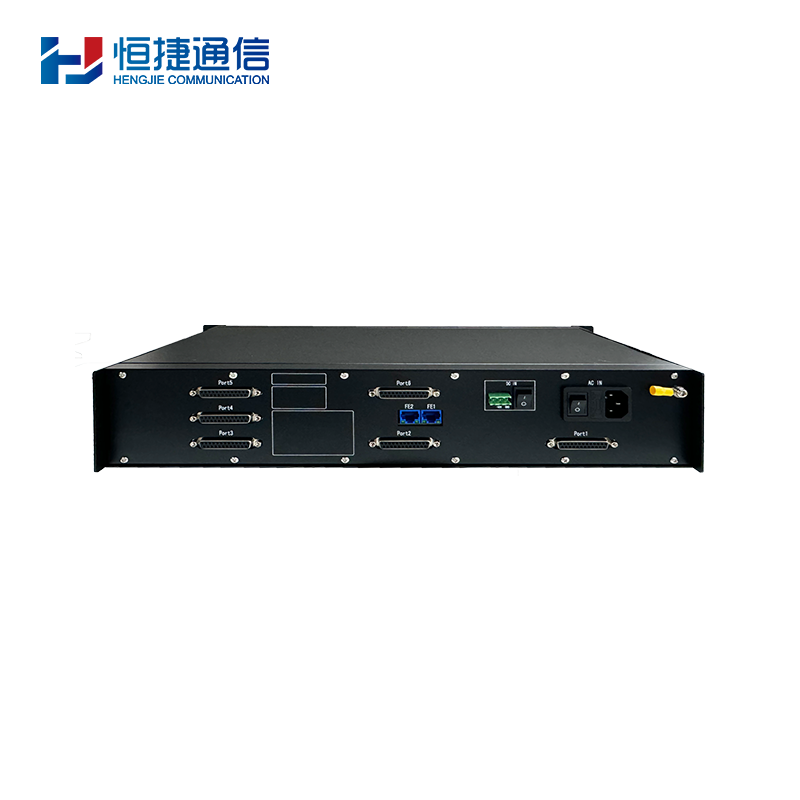

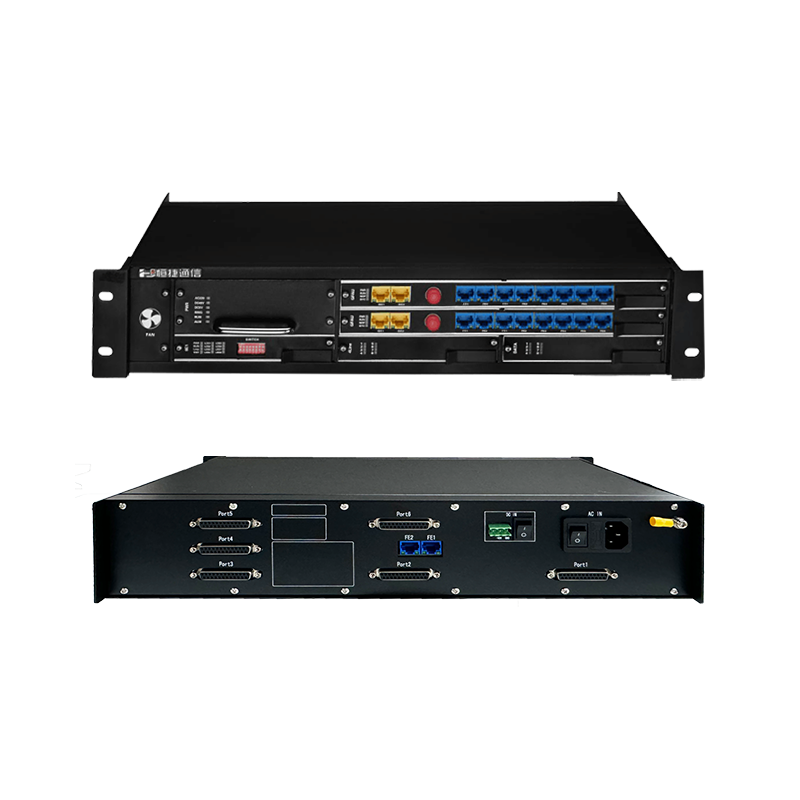

HJ-GAN226

The HJ-GAN226 series products are fiber optic transmission devices independently developed and produced by our company. The optical port rate is 10G system, with powerful functions and stable performance. It realizes the hybrid multiplexing and transmission of 1000M line-rate Ethernet data channels, E1 (G.703), voice (telephone + magnetic + 4-wire audio, etc.), video audio, and asynchronous data RS232/422/485. It features alarm and monitoring functions, a well-designed structure, high integration, low power consumption, and ease of use. It is widely used in public networks of telecom, mobile and other telecom operators, as well as in dedicated networks of postal and telecommunications, power, banking, public security, military, railways, and large enterprises and institutions.

Message

Detailed introduction
Features
Product Configuration
Application Plan
Data Download

Commodity name: HJ-GAN226

The HJ-GAN226 series products are fiber optic transmission devices independently developed and produced by our company. The optical port rate is 10G system, with powerful functions and stable performance. It realizes the hybrid multiplexing and transmission of 1000M line rate Ethernet data channels, E1 (G.703), voice (telephone + magnet + 4-wire audio, etc.), video audio, and asynchronous data RS232/422/485. It features alarm and monitoring functions, a well-designed structure, high integration, low power consumption, and ease of use.

Widely used in public networks of telecom operators such as telecommunications and mobile, as well as in dedicated networks of postal and telecommunications, electric power, banking, public security, military, railways, large enterprises and institutions, etc.

Interface technical parameters comply with relevant international or domestic standards;
All boards support hot swapping;
All ports have surge and level-3 lightning protection;
Modular system design; various functional service modules can be configured as needed;
Supports Ethernet (10M/100M/1000M), E1 (G.703), telephone, audio and video, asynchronous data RS232/422/485, etc.;
1000M Ethernet channel, supports non-blocking, line-rate forwarding, compatible with IEEE 802.3ab;
Ethernet transmission rates: 10/100/1000 Mbps;
100M Ethernet port fully physically isolated;
Gigabit fiber optic transmission, large capacity, easy to upgrade;
High circuit integration. Equipment operates stably, with low failure rate and low power consumption;
Comprehensive network management functions, real-time monitoring of various device operating statuses (optional).

Interface Type	Description
1000M Ethernet	1~4, RJ45 Physical Isolation
E1 Interface	1~8, DB25 to BNC Interface (Optional)
Telephone	1~64, DB25/D37 Interface (Optional)
Optional Interface	Network Management (Optional)
