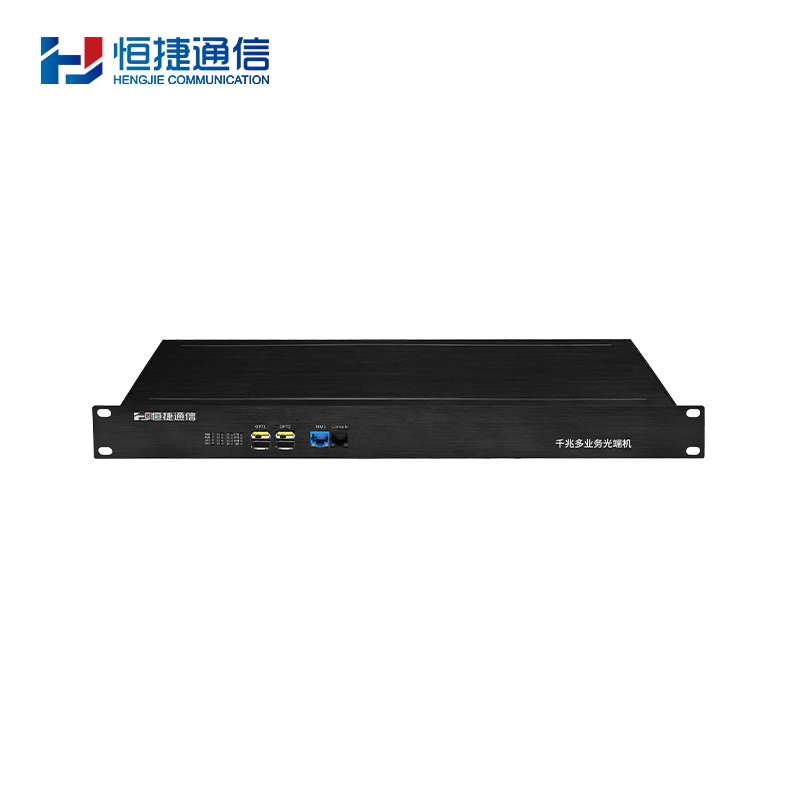

HJ-GAN111

HJ-GAN111 Gigabit Ethernet Optical Transceiver is a physically isolated Ethernet fiber transmission device developed for systems such as high-definition network cameras and network access control. It uses 1.5G/2.5G/3.125G transmission rates and CWDM technology to achieve mixed multiplexing and transmission of 1000M/100M line-rate Ethernet data channels, E1, voice, asynchronous data RS485/422/232, and other services. The HJ-GAN111 Gigabit Ethernet Optical Transceiver adopts a 19-inch standard 1U structure design, making device installation, debugging, and maintenance convenient.

Message

Detailed introduction
Features
Product Configuration

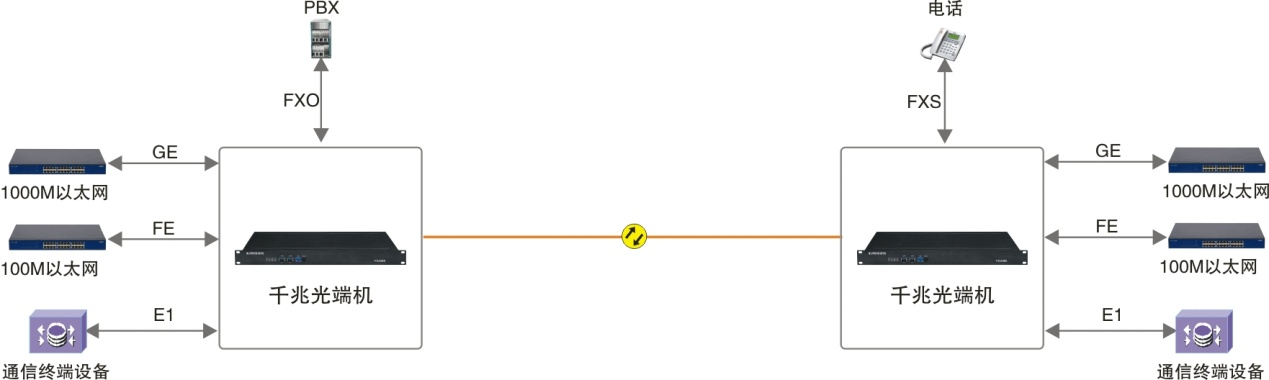

Application Plan
Data Download

Commodity name: HJ-GAN111

HJ-GAN111 Gigabit Ethernet Optical Transceiver is a physically isolated Ethernet fiber transmission device developed for systems such as high-definition network cameras and network access control. It uses 1.5G/2.5G/3.125G transmission rates and CWDM technology to achieve 1000M/100M line-rate Ethernet data channels, E1, voice, asynchronous data RS485/422/232 and other services' multiplexing and transmission.

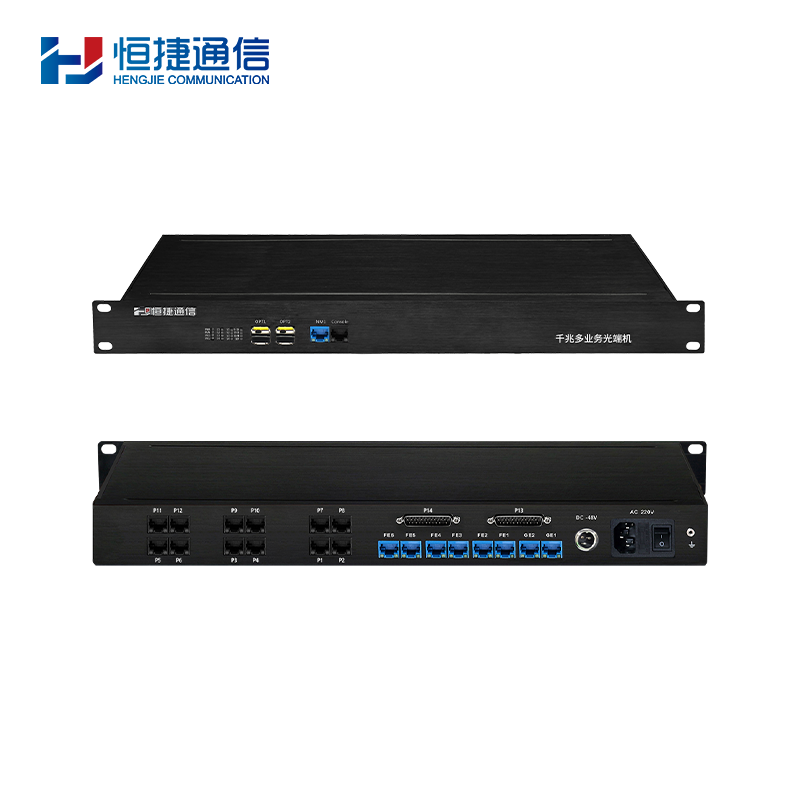

HJ-GAN111 Gigabit Ethernet Optical Transceiver adopts a 19-inch standard 1U structure design, making device installation, debugging, and maintenance convenient.

Supports Ethernet (100M/1000M), E1 (G.703), voice, asynchronous data, and other services simultaneously;
Provides 2 1000M and 6 100M Ethernet interfaces, all Ethernet ports are fully physically isolated;
Provides 16 E1 (G.703) interfaces;
Configurable FXO/FXS/magnet/four-wire audio/E&M/RS232/RS422/RS485 according to user requirements;
Telecom-grade voice quality, supports caller ID; reverse polarity billing signal (optional);
Provides complete alarm and operation status indicator lights;
Power supply via AC220V or DC-48V;
Equipped with comprehensive network management functions, real-time monitoring of various device operating statuses (optional);
19-inch 1U aluminum profile chassis.

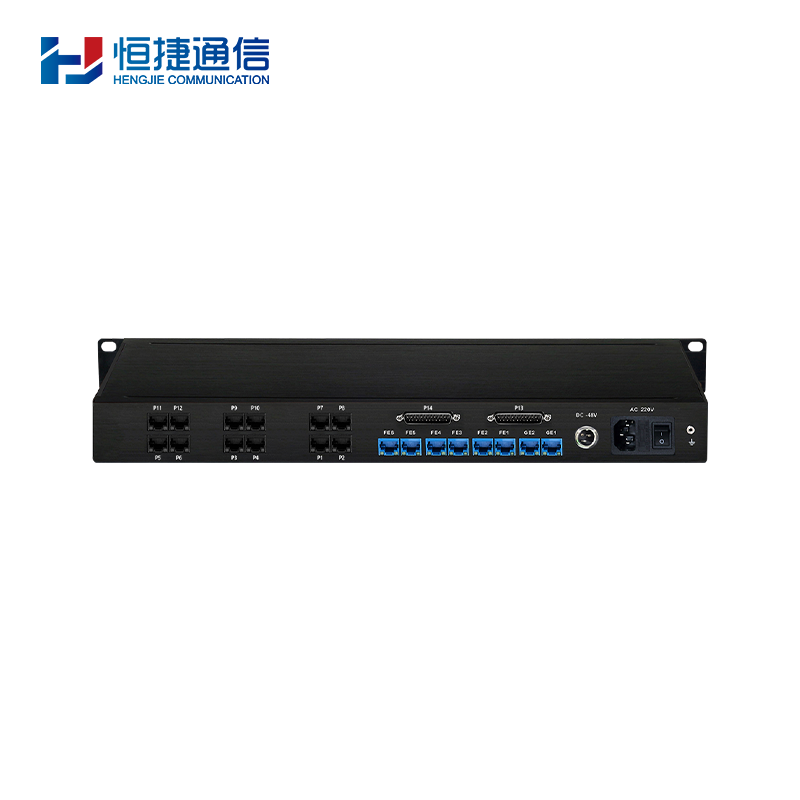

Interface Type	Description
1000M Ethernet	1~2, RJ45
100M Ethernet	1~6, RJ45
E1 Interface	1~16, BNC Interface (DB25 to BNC) (Optional)
Telephone	8~48, RJ45 Interface (Optional)
Asynchronous Data	4~8 Channels RS485/422/232 (Optional)
Optional Interface	Network Management (Optional)
